308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3149

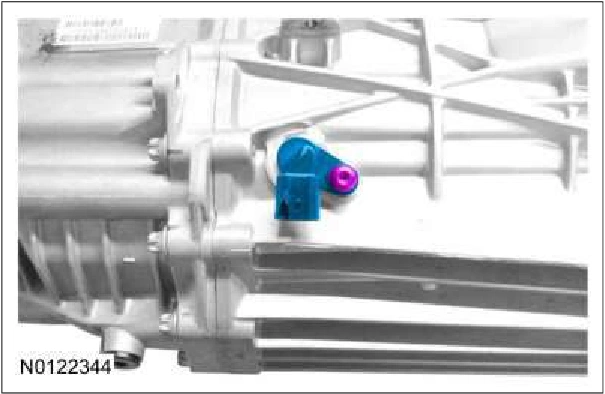

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3149Original colors & callouts · Select to enlarge

50. Install a new output shaft seal on the special tools. Use Special Service Tool: 308-811 Installer, Rear Seal. , 205-153 (T80T-4000-W) Handle.

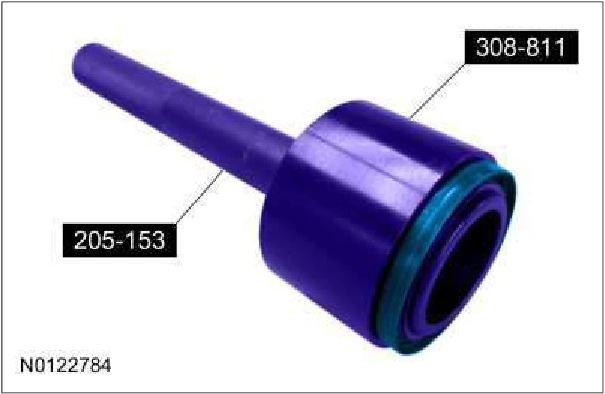

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3149Original colors & callouts · Select to enlarge

51. Using the special tools, install the output shaft seal. Use Special Service Tool: 308-811 Installer, Rear Seal. , 205-153 (T80T-4000-W) Handle.

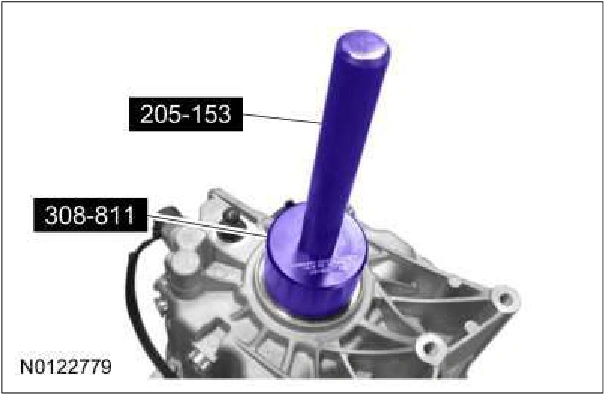

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3149Original colors & callouts · Select to enlarge

52. Using the special tools, install the output shaft flange. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack. , 308-808 Installer, Rear Flange.
