308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3146Original colors & callouts · Select to enlarge

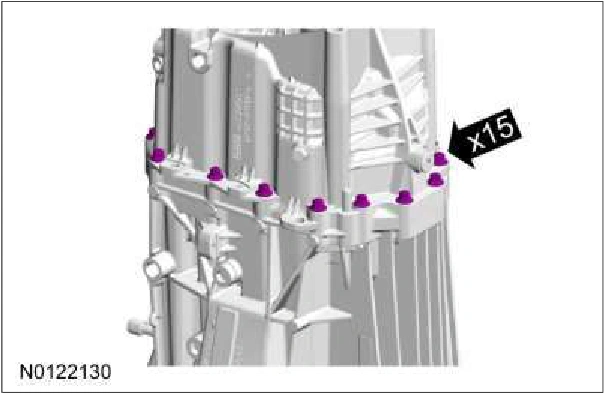

44. Loosely install the bolts.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3146Original colors & callouts · Select to enlarge

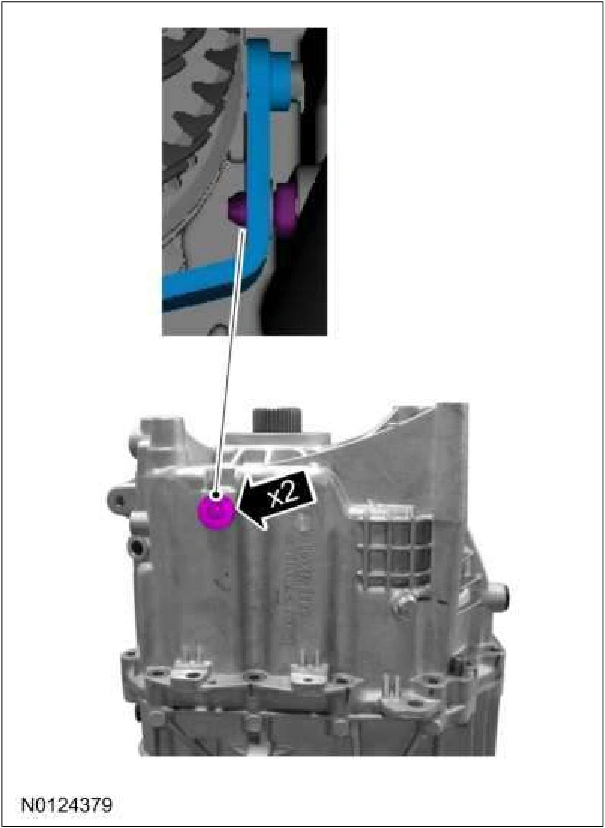

45. Using a brass drift, tap the dowel pins flush with the transmission case.
