308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3144

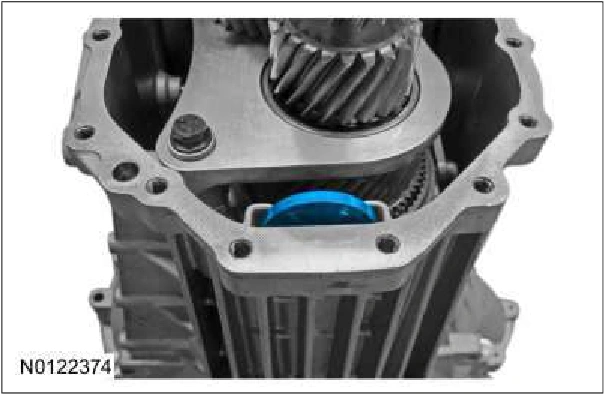

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3144Original colors & callouts · Select to enlarge

40. Shift the transmission into 4th gear.

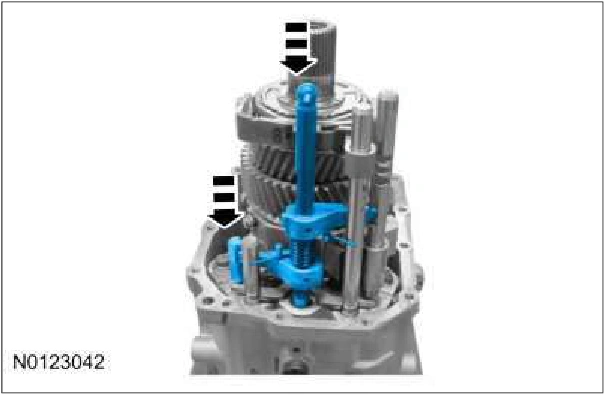

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3144Original colors & callouts · Select to enlarge

41. NOTE: Art shown with internal components removed for clarity.

NOTE: Do not wait longer than 10 minutes to install the rear transmission case assembly due to rapid cure of the sealant.

Clean the sealing surfaces of the front transmission case and the sealing surfaces of the rear transmission case. Thinly coat the sealing surface of the front transmission case assembly and the sealing surface of the rear transmission case assembly with gasket maker. Material : Gasket Maker / TA-16 (WSK-M2G348-A5)
