damage to the synchronizer assembly and the synchronizer ring can occur.

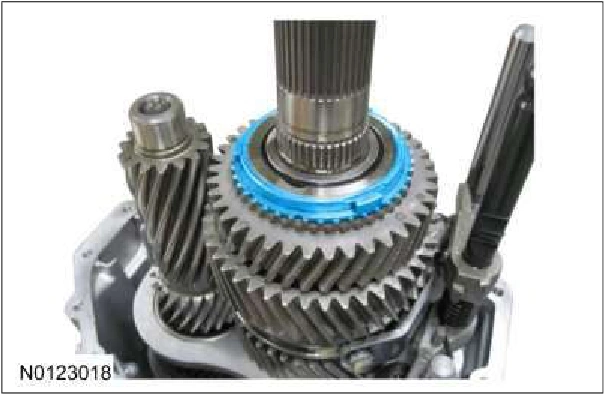

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3143Original colors & callouts · Select to enlarge

37. NOTICE: The 3 synchronizer ring tabs must engage into the 3 synchronizer assembly slots or

Using the special tool, install the reverse gear synchronizer assembly. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack.

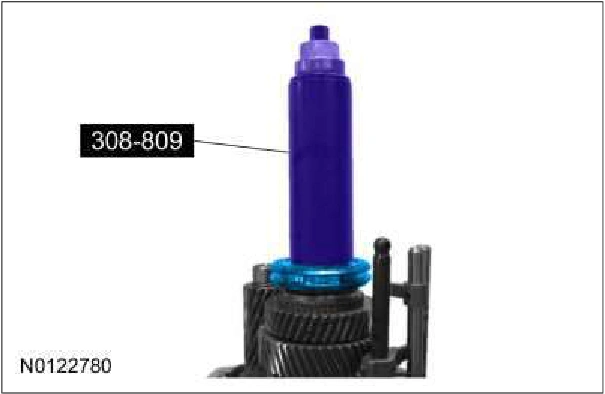

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3143Original colors & callouts · Select to enlarge

38. NOTE: To install the reverse shift fork and the reverse shift rail assembly, the transmission must be in neutral and the grooves on the shift rails must be aligned with the interlock plate.

Install the reverse shift fork and the reverse shift rail assembly.

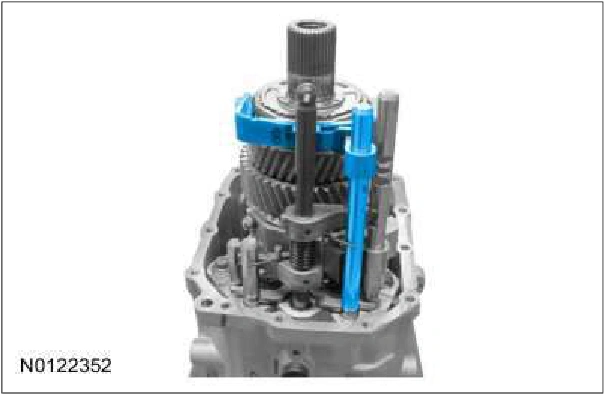

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3143Original colors & callouts · Select to enlarge

39. Install the magnet.

Source reference 3143
