damage to the synchronizer assembly and the synchronizer ring assembly can occur.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82

2016 MustangMT82Reference 3,140 / 6,619HTML edition

← Chapter contents

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3140Original colors & callouts · Select to enlarge

29. NOTICE: The 3 synchronizer ring tabs must engage into the 3 synchronizer assembly slots or

damage to the synchronizer assembly and the synchronizer ring assembly can occur.

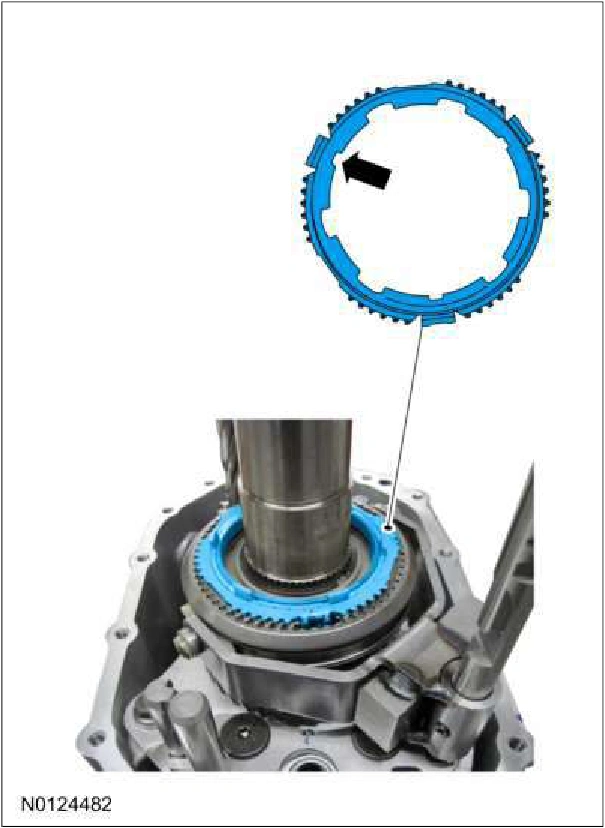

NOTE: The 1st gear synchronizer ring assembly outer ring has one identification notch.

Install the 1st gear synchronizer ring assembly.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3140Original colors & callouts · Select to enlarge

30. Install the 1st gear needle bearing.

Source reference 3140
