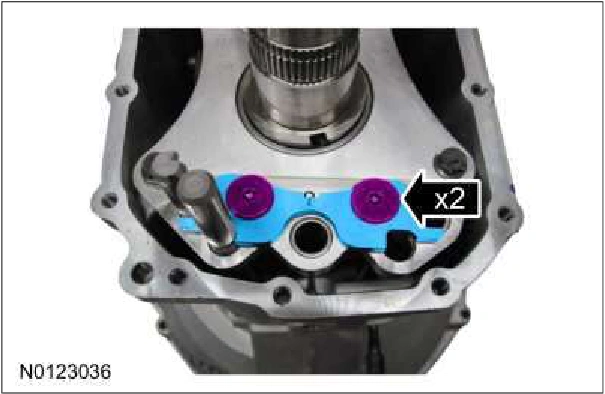

21. NOTE: Make sure the interlock plate moves freely.

Install the interlock plate, apply threadlock and install the interlock plate bolts. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6) Torque : 18 lb.ft (24 Nm)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3137Original colors & callouts · Select to enlarge

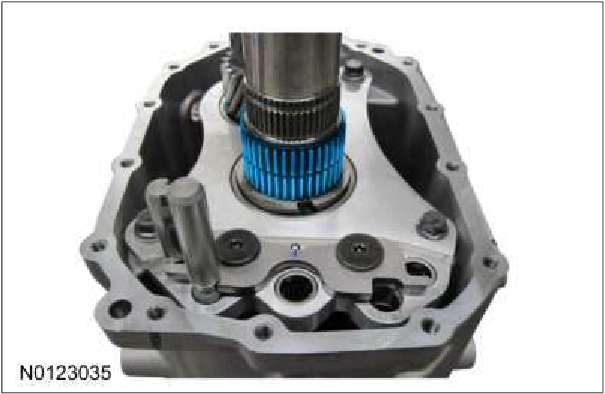

22. Install the 2nd gear needle bearing.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3137Original colors & callouts · Select to enlarge

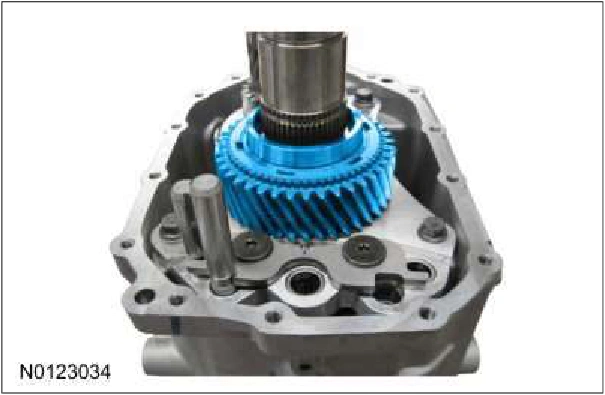

23. Install the 2nd gear.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3137Original colors & callouts · Select to enlarge

24. NOTICE: The 6 synchronizer ring tabs must engage into the 6 gear slots or damage to the
