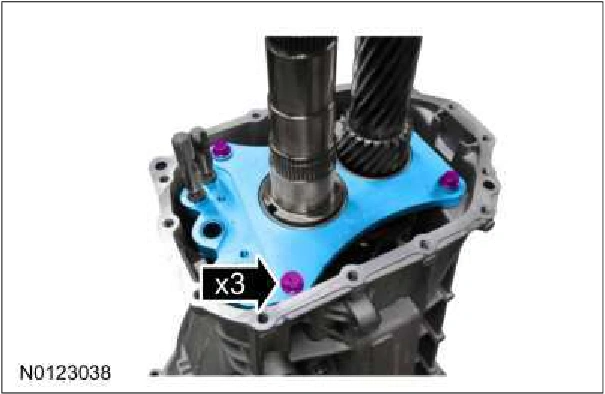

shaft facing down.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3135Original colors & callouts · Select to enlarge

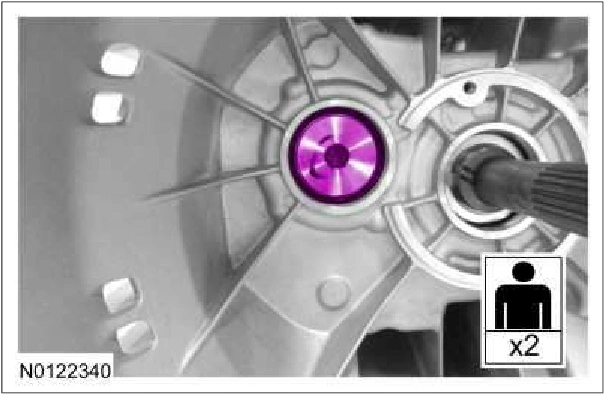

16. NOTICE: Install the countershaft bolt with the transmission in the vertical position with the input

Apply threadlock and install the countershaft bolt. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6) Torque : 70 lb.ft (95 Nm)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3135Original colors & callouts · Select to enlarge

17. Remove the center support and the bolts.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3135Original colors & callouts · Select to enlarge

18. Pull up on the 3rd/4th shift rail and 5th/6th shift rail to unlock the transmission from 2 gears.

Source reference 3135
