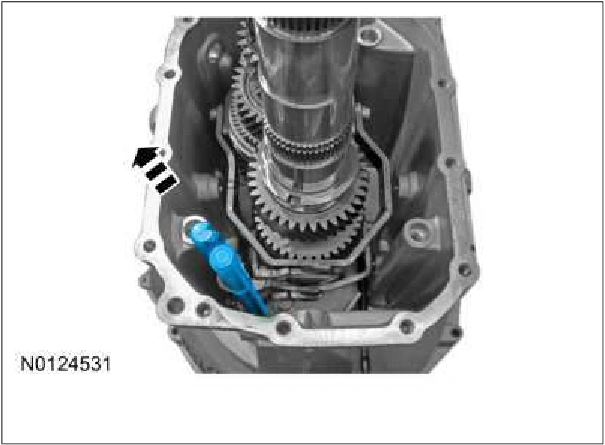

transmission case can occur.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3136Original colors & callouts · Select to enlarge

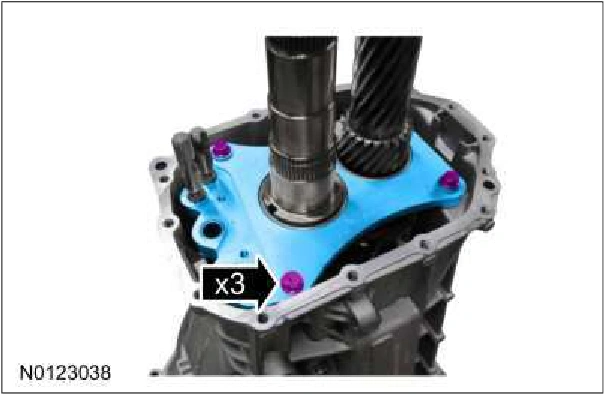

19. NOTICE: The center support must be tightened evenly or damage to the center support or

Install the center support, apply threadlock and evenly tighten the center support bolts. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6) Torque : 18 lb.ft (24 Nm)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3136Original colors & callouts · Select to enlarge

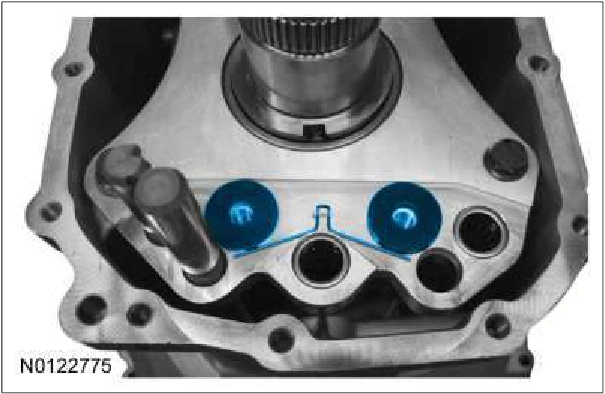

20. Install the spring and spacers.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3136Original colors & callouts · Select to enlarge

Source reference 3136
