308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3133

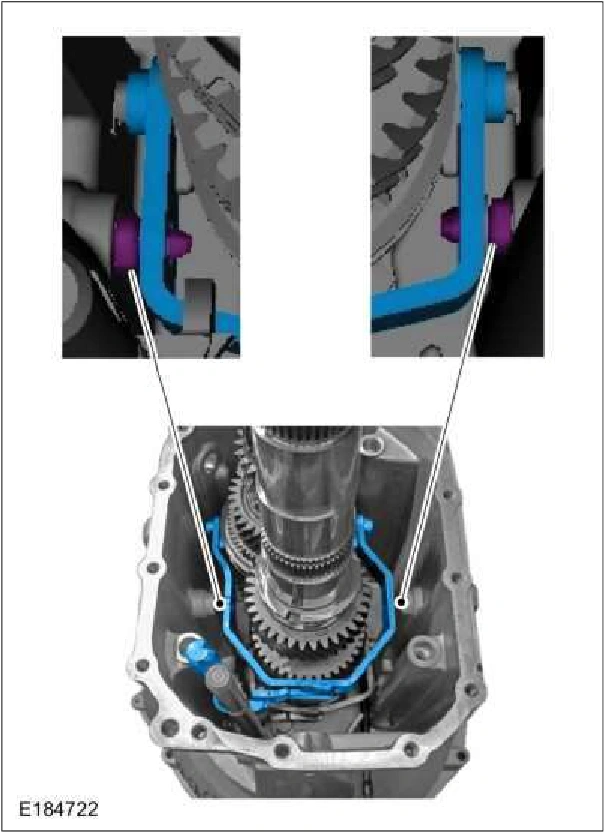

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3133Original colors & callouts · Select to enlarge

12. Tighten the 2 LH and the 2 RH shift fork pivot bolts. Torque : 27 lb.ft (37 Nm)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3133Original colors & callouts · Select to enlarge

13. Push down the 3rd/4th shift rail and the 5th/6th shift rail to lock the transmission into 2 gears.

Source reference 3133
