2016 workshop · Manual Transmission, Clutch and Transfer Case

can occur.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82

2016 MustangMT82Reference 3,131 / 6,619HTML edition
← Chapter contents

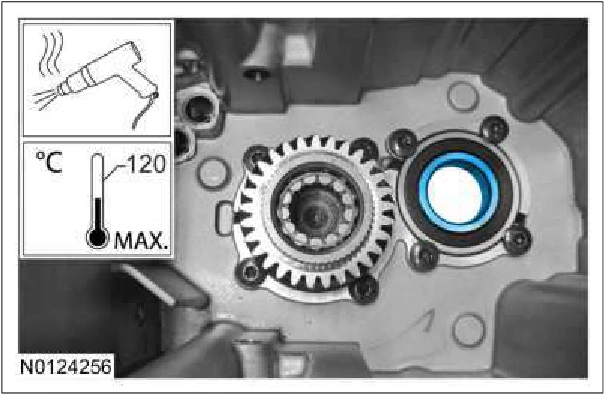

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3131Original colors & callouts · Select to enlarge

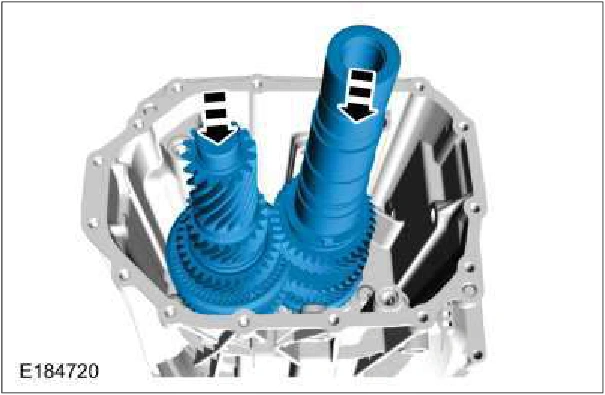

9. Install the output shaft and countershaft assembly.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3131Original colors & callouts · Select to enlarge

10. NOTICE: Make sure the shift fork pivot bolts engage into the shift fork or damage to the shift fork

can occur.

Install the 5th/6th shift fork, the 5th/6th shift rail. Apply threadlock and sealer and loosely install the shift fork pivot bolts. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6)
