input shaft bearing can occur.

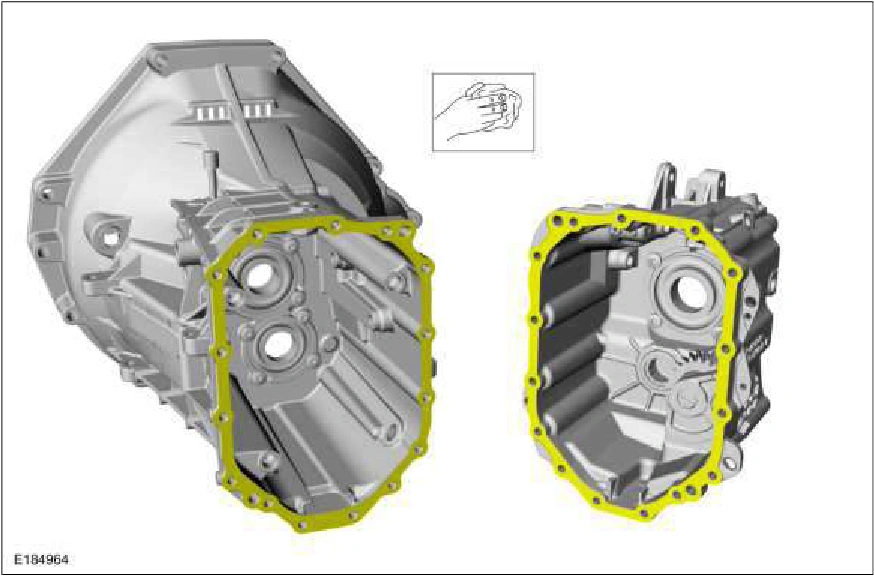

1. NOTICE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means

to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation (303-00 Engine System - General Information, General Procedures).

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3128Original colors & callouts · Select to enlarge

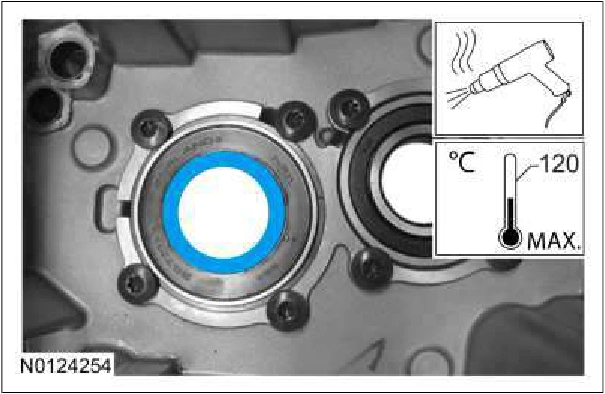

2. NOTICE: Do not heat the input shaft bearing higher than 120°C (248°F) maximum or damage to the

Using a heat gun, heat the input shaft bearing inner race to a maximum of 120°C (248°F).

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3128Original colors & callouts · Select to enlarge

3. Install the input shaft.

Source reference 3128
