308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3125

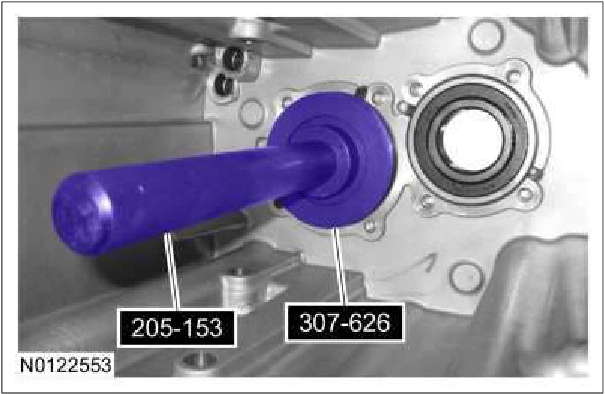

Use Special Service Tool: 307-626 Installer, Differential Seal. , 205-153 (T80T-4000-W) Handle.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3125Original colors & callouts · Select to enlarge

13. Apply threadlock and install the bearing retaining bolts. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6) Torque : 27 lb.ft (36 Nm)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3125Original colors & callouts · Select to enlarge

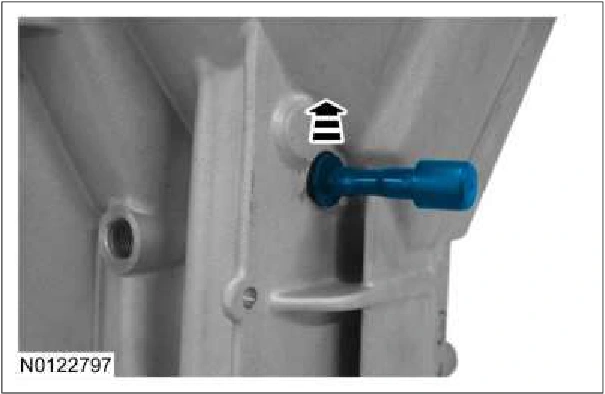

14. NOTE: Before installing the vent tube, lightly coat the vent tube "O" ring with recommended transmission fluid.

If removed, install the transmission case vent tube with the notch pointing to the front of the transmission case.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3125Original colors & callouts · Select to enlarge
