308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3123

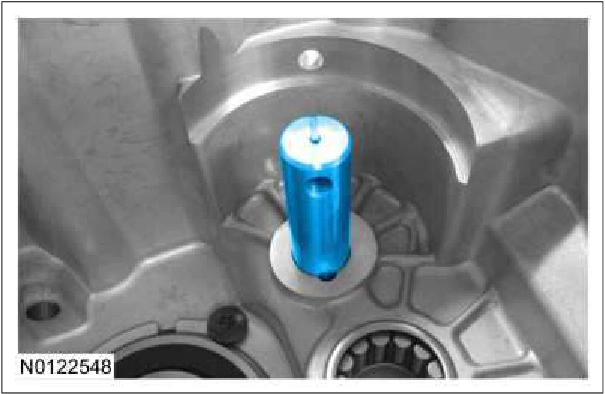

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3123Original colors & callouts · Select to enlarge

7. Install the reverse idler gear and the reverse idler gear needle bearing.

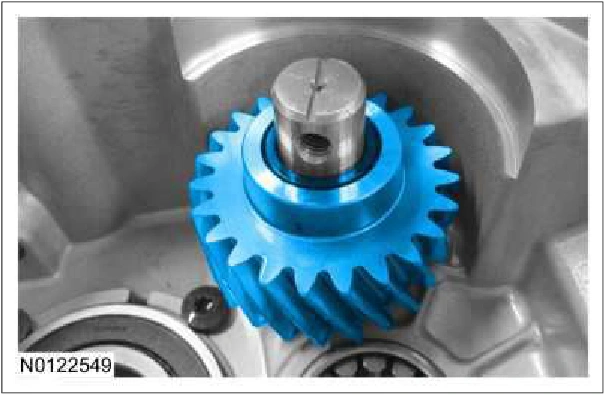

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3123Original colors & callouts · Select to enlarge

8. Install the reverse idler gear bracket.

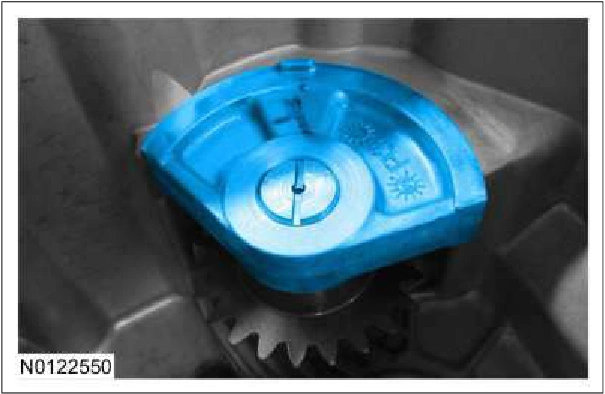

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3123Original colors & callouts · Select to enlarge

9. Apply threadlock and install the reverse idler gear bracket bolt. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6) Torque : 20 lb.ft (27 Nm)

Source reference 3123
