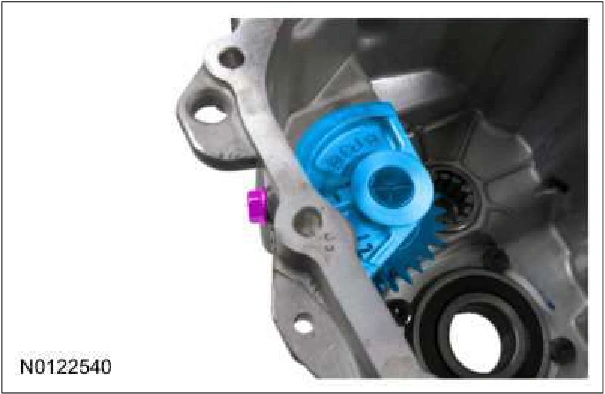

transmission case can occur.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3124Original colors & callouts · Select to enlarge

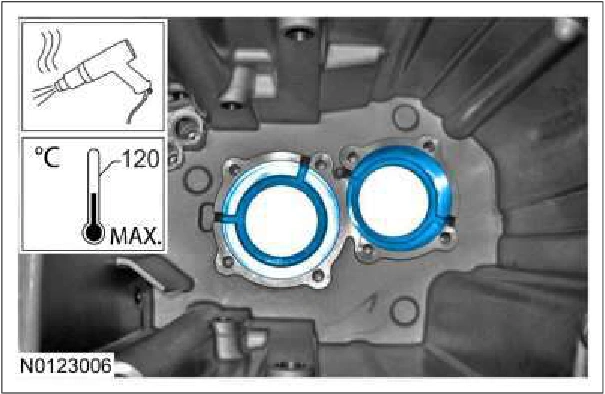

10. NOTICE: Do not heat the transmission case higher the 120°C (248°F) maximum or damage to the

Using a heat gun, heat the transmission case to maximum of 120°C (248°F).

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3124Original colors & callouts · Select to enlarge

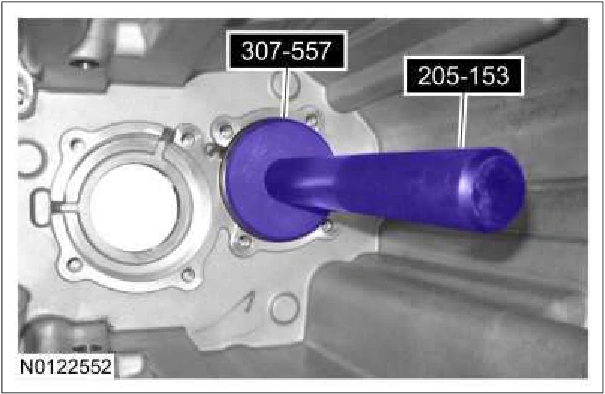

11. Using the special tools, install the countershaft bearing. Use Special Service Tool: 307-557 Installer, Ball Bearing. , 205-153 (T80T-4000-W) Handle.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3124Original colors & callouts · Select to enlarge

12. NOTICE: Install the input shaft bearing with the grooved side of the outer input shaft bearing race

facing the inside of the transmission case or damage to the transmission case can occur.

Using the special tools, install the input shaft bearing.

Source reference 3124
