transmission case can occur.

necessary.

ASSEMBLY

NOTICE: Lubricate all components with the recommended transmission fluid before reassembling.

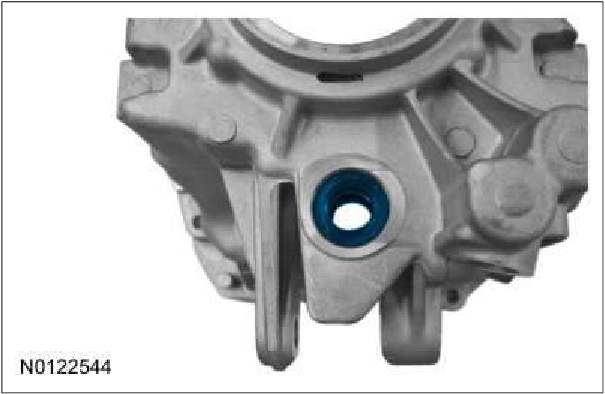

1. If removed, install the shift shaft seal. Material : Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3121Original colors & callouts · Select to enlarge

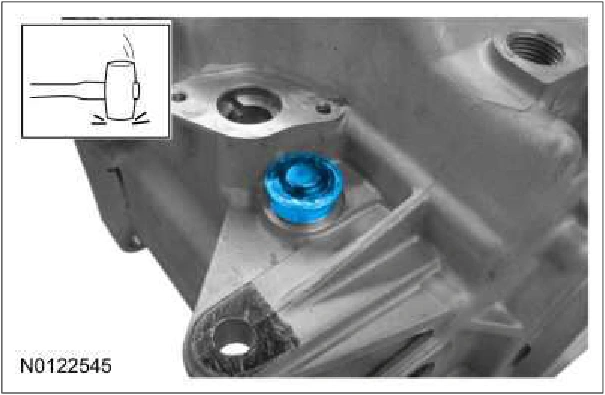

2. If removed, use a soft-faced hammer to install the shift shaft detent.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3121Original colors & callouts · Select to enlarge

3. NOTICE: Do not heat the transmission case higher the 120°C (248°F) maximum or damage to the

Using a heat gun, heat the transmission case to maximum of 120°C (248°F).

Source reference 3121
