308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3118

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3118Original colors & callouts · Select to enlarge

4. If replacing the transmission case, remove the clutch slave cylinder tube retaining clip.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3118Original colors & callouts · Select to enlarge

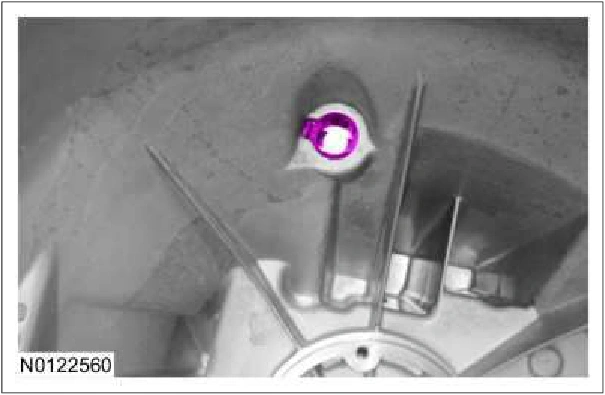

5. If replacing the transmission case, remove the transmission case vent tube.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3118Original colors & callouts · Select to enlarge

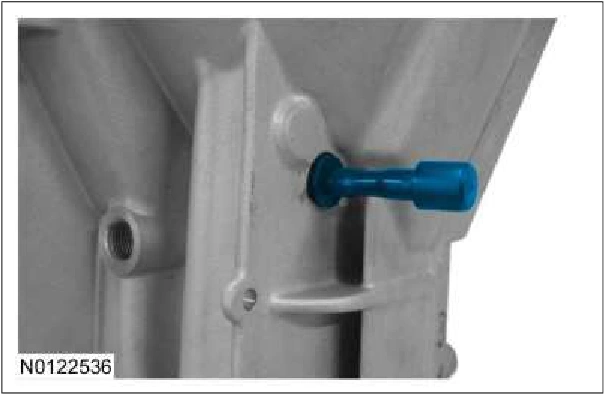

6. Using a brass drift, tap the dowel pins flush with the transmission case.
