DISASSEMBLY

Threadlock 262 TA-26	WSK-M2G351-A6
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

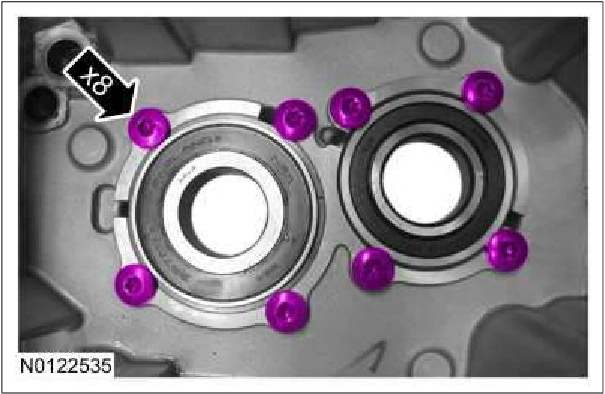

1. Remove the bolts.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3117Original colors & callouts · Select to enlarge

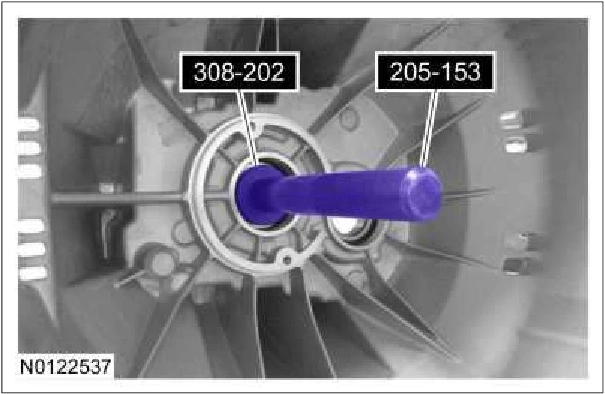

2. Using the special tools, remove the input shaft bearing. Inspect the input shaft bearing for wear or damage. Install a new bearing as necessary. Use Special Service Tool: 308-202 (T91T-7127-B) Installer, Input Shaft Bearing. , 205-153 (T80T- 4000-W) Handle.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3117Original colors & callouts · Select to enlarge

3. Using the special tools, remove the countershaft bearing. Inspect the countershaft bearing for wear or damage. Install a new bearing as necessary. Use Special Service Tool: 308-202 (T91T-7127-B) Installer, Input Shaft Bearing. , 205-153 (T80T- 4000-W) Handle.
