ASSEMBLY

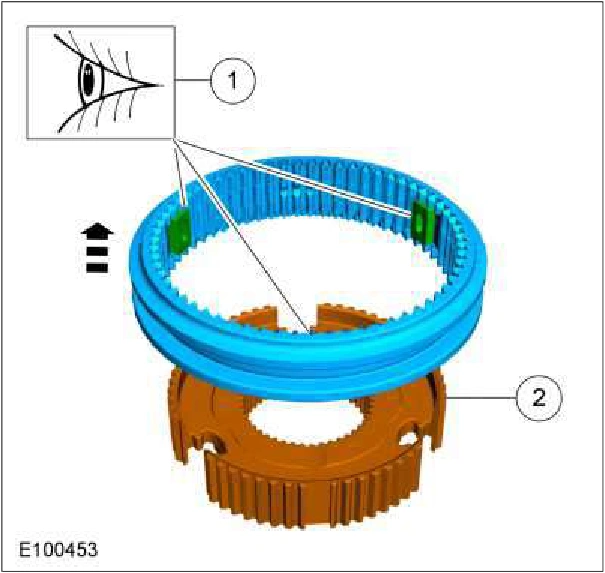

NOTE: Make sure that the endstops do not drop off of the synchronizer sleeve during disassembly so that the correct installed position can be noted.

1. Remove the endstops from the synchronizer sleeve.

2. Synchronizer hub.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3114Original colors & callouts · Select to enlarge

1. NOTE: 3rd/4th gear only.

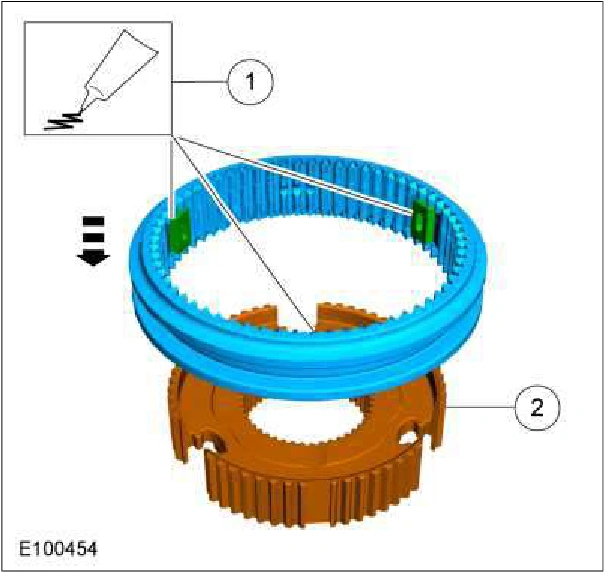

1. Use grease to hold the endstops to the synchronizer sleeve. Material : High Temperature 4x4 Front Axle and Wheel Bearing Grease / XG-11 (WSS-M1C267-A1)

2. Install the synchronizer sleeve on the synchronizer hub.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3114Original colors & callouts · Select to enlarge
