Synchronizers

308-03A Manual Transmission - 6-Speed Manual Transmission - 2016 Mustang MT82

Procedure revision date:

Disassembly and Assembly of Subassemblies

04/30/2015

Materials

Name	Specification
High Temperature 4x4 Front Axle and Wheel Bearing Grease XG-11	WSS-M1C267-A1

DISASSEMBLY

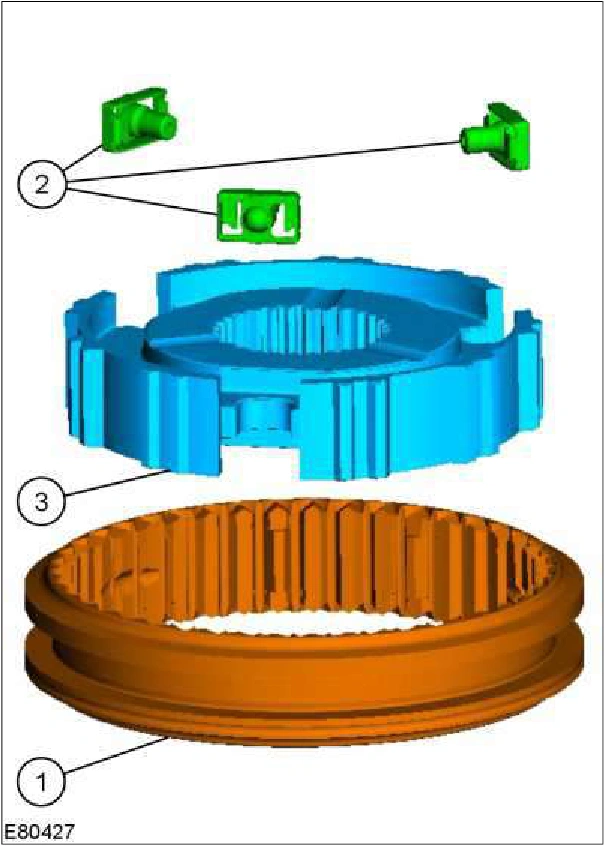

1. NOTE: Make a note of/mark the installed positions of the components before removal.

1. Synchronizer sleeve.

2. Pressure pieces.

3. Synchronizer hub.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3113Original colors & callouts · Select to enlarge

2. NOTE: 3rd/4th gear only.

NOTE: Make a note of/mark the installed positions of the components before removal.

Source reference 3113
