308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3111

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3111Original colors & callouts · Select to enlarge

4. Install the 6th gear.

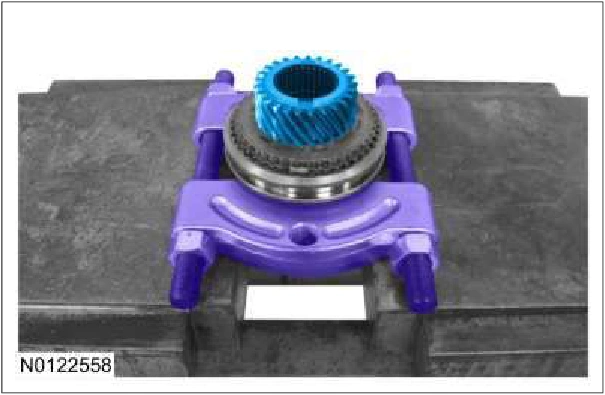

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3111Original colors & callouts · Select to enlarge

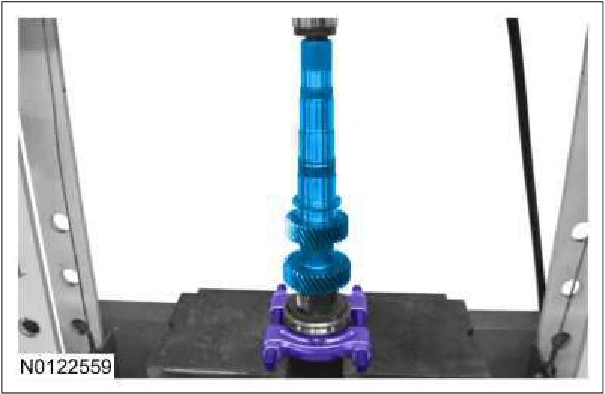

5. Using the bearing separator and a hydraulic press, install the 5th/6th gear synchronizer assembly and the 6th gear. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3111Original colors & callouts · Select to enlarge

6. Install the 5th/6th gear synchronizer assembly snap ring.

Source reference 3111
