308-03A Manual Transmission - 6-Speed Manual Transmission - 2016 Mustang MT82

Procedure revision date:

Disassembly and Assembly of Subassemblies

04/30/2015

Output Shaft

Special Tool(s) / General Equipment

Hydraulic Press

Bearing Separator

Materials

Name

Specification

Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC

WSS-M2C200-D2

DISASSEMBLY

NOTICE: Hand-tighten the Bearing Separator to prevent gear damage.

NOTICE: Support the output shaft while using the press to prevent damage to the shaft or gears.

1. Remove the 5th/6th gear synchronizer assembly snap ring.

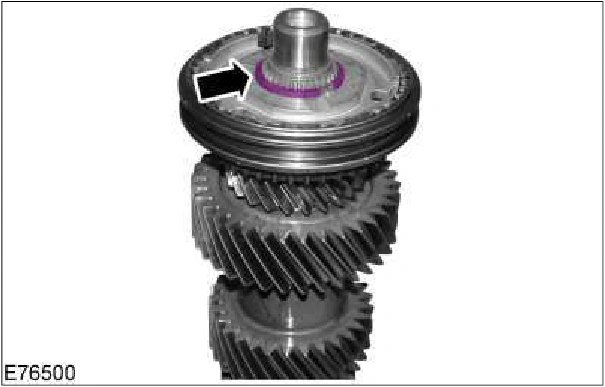

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3108Original colors & callouts · Select to enlarge

2. Using the bearing separator and a hydraulic press, remove the 5th/6th gear synchronizer assembly. Inspect the 5th/6th gear synchronizer assembly and the 6th gear synchronizer ring and cone for wear or damage. Install new components as necessary. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press
