ASSEMBLY

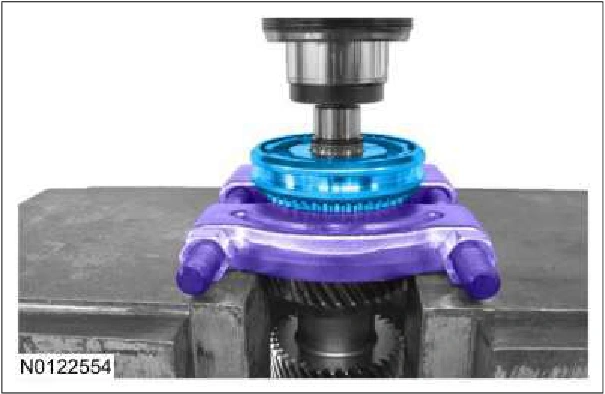

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3109Original colors & callouts · Select to enlarge

3. Remove the 6th gear. Inspect the 6th gear for wear or damage. Install a new gear as necessary.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3109Original colors & callouts · Select to enlarge

4. Remove the 6th gear needle bearing. Inspect the 6th gear needle bearing for wear or damage. Install a new needle bearing as necessary.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3109Original colors & callouts · Select to enlarge

5. Inspect the output shaft for scoring or worn or damaged splines. Install a new output shaft as necessary.

Source reference 3109
