NOTICE: Lubricate all components with the recommended transmission fluid before reassembling.

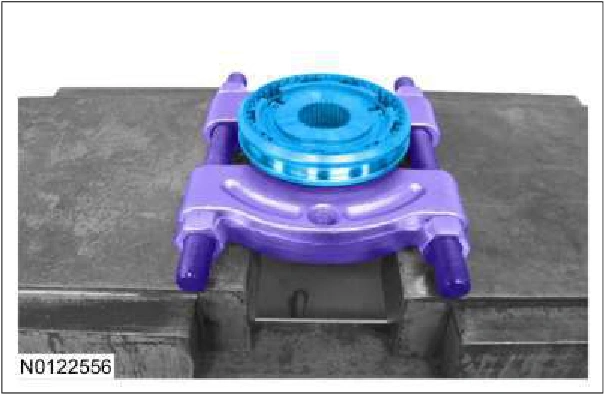

1. Position the 5th/6th gear synchronizer assembly on the bearing separator and a hydraulic press. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press Material : Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
2. NOTICE: The 3 synchronizer ring tabs must engage into 3 synchronizer assembly slots or damage
to the synchronizer assembly and synchronizer ring can occur.

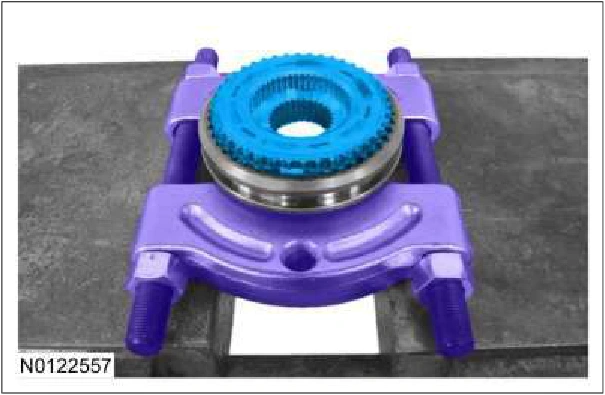

Install the 6th gear synchronizer ring and cone.
Align the 3 synchronizer ring tabs with the 3 synchronizer assembly slots.
3. Install the 6th gear needle bearing.
