race facing the inside of the transmission case or damage to the transmission case can occur.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3122Original colors & callouts · Select to enlarge

4. NOTICE: Install the output shaft bearing with the grooved side of the outer output shaft bearing

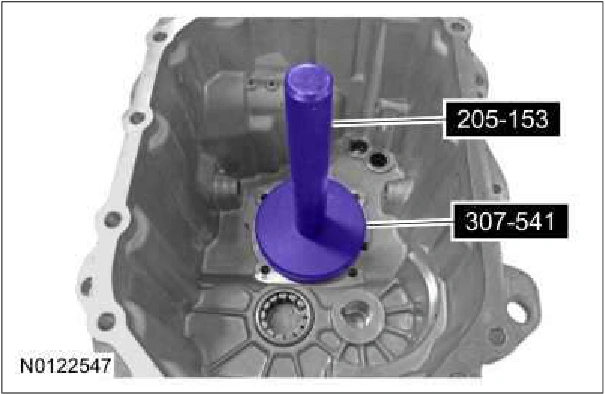

Using the special tools, install the output shaft bearing. Use Special Service Tool: 307-541 Installer, Transfer Gear Bearing. , 205-153 (T80T-4000-W) Handle.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3122Original colors & callouts · Select to enlarge

5. Apply threadlock and install the bearing retaining bolts. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6) Torque : 27 lb.ft (36 Nm)

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3122Original colors & callouts · Select to enlarge

6. Install the reverse idler gear shaft.

Source reference 3122
