the synchronizer hub and the synchronizer ring assembly can occur.

synchronizer ring assembly can occur.

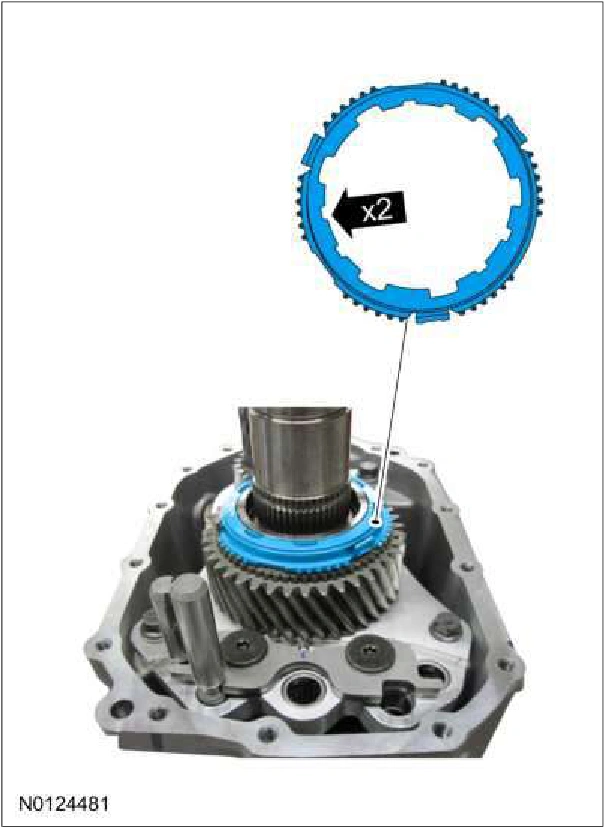

NOTE: The 2nd gear synchronizer ring assembly outer ring has 2 identification notches.

Install the 2nd gear synchronizer ring assembly.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3138Original colors & callouts · Select to enlarge

25. NOTICE: The 3 synchronizer ring tabs must engage into the 3 synchronizer hub slots or damage to

NOTICE: The long shoulder of the 1st/2nd synchronizer hub must be facing 2nd gear or damage to the synchronizer hub can occur.

With the long shoulder of the 1st/2nd synchronizer hub must be facing 2nd gear, use the special tool and install the 1st/2nd synchronizer hub. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack.

Source reference 3138
