308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — 2016 workshop reference 3139

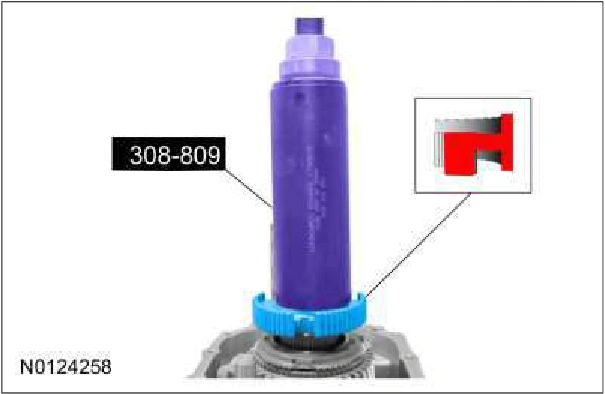

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3139Original colors & callouts · Select to enlarge

26. Install the 1st/2nd synchronizer hub snap ring.

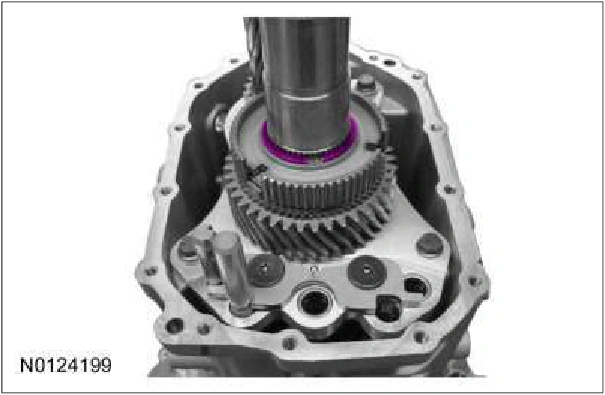

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3139Original colors & callouts · Select to enlarge

27. NOTE: Align the index marks made during removal on the synchronizer sleeve and the synchronizer hub.

With the groove on the 1st/2nd synchronizer sleeve facing 2nd gear, install the 1st/2nd shift fork the 1st/2nd shift rail and the 1st/2nd synchronizer sleeve.

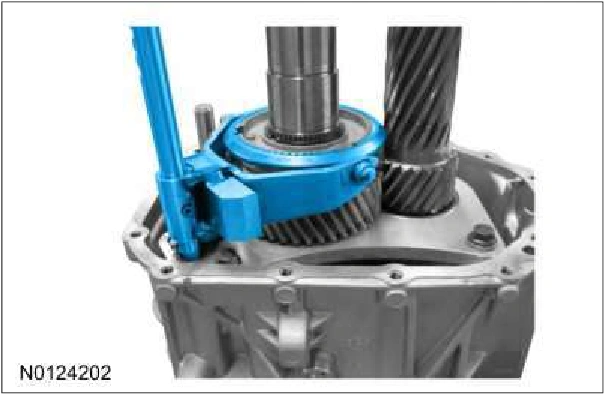

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3139Original colors & callouts · Select to enlarge

28. NOTE: Slide the synchronizer sleeve up to install the pressure pieces.

Install the 3 pressure pieces.

Source reference 3139
