synchronizer assembly and synchronizer ring assembly can occur.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3141Original colors & callouts · Select to enlarge

31. NOTICE: The 6 synchronizer ring tabs must engage into the 6 gear slots or damage to the

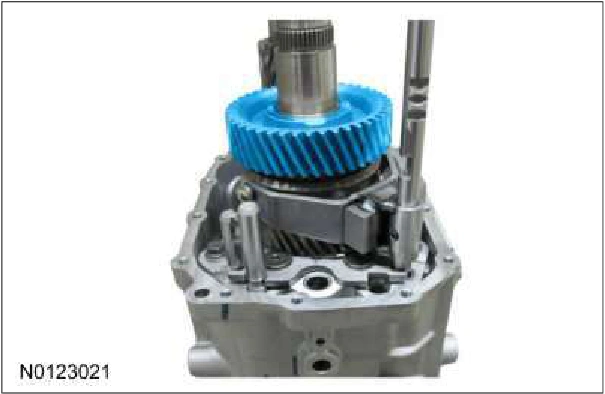

Install the 1st gear.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3141Original colors & callouts · Select to enlarge

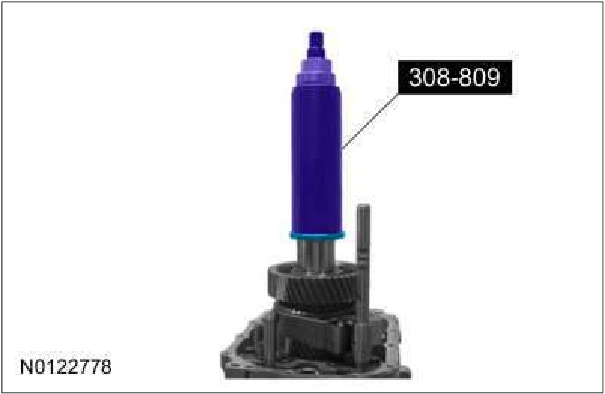

32. Using the special tool, install the reverse gear needle bearing race. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 3, reference 3141Original colors & callouts · Select to enlarge

33. Install the reverse gear needle bearing.

Source reference 3141
