shifted into 4th gear, do not allow the shift rails to bind during installation or damage to the — 2016 workshop reference 3145

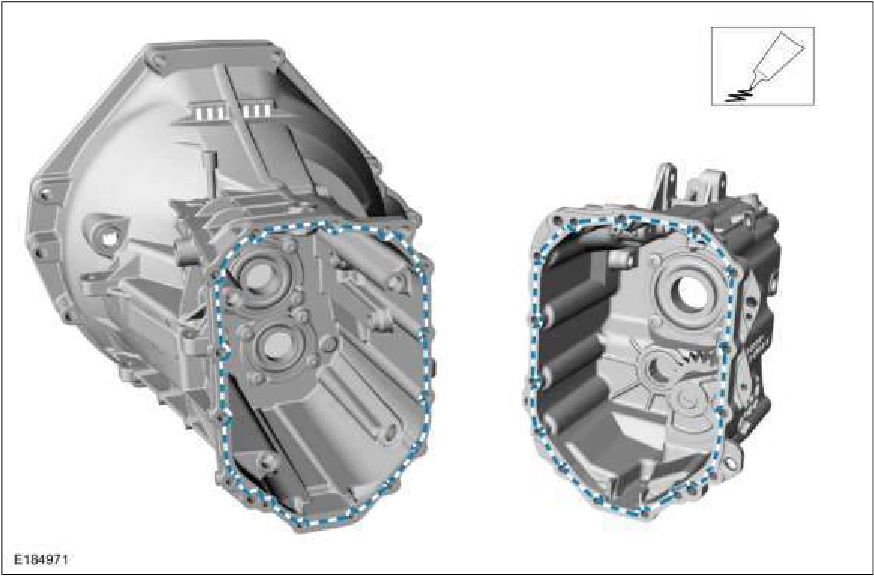

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 1, reference 3145Original colors & callouts · Select to enlarge

42. NOTICE: The rear transmission case assembly must be installed evenly with the transmission

shifted into 4th gear, do not allow the shift rails to bind during installation or damage to the transmission case assembly can occur.

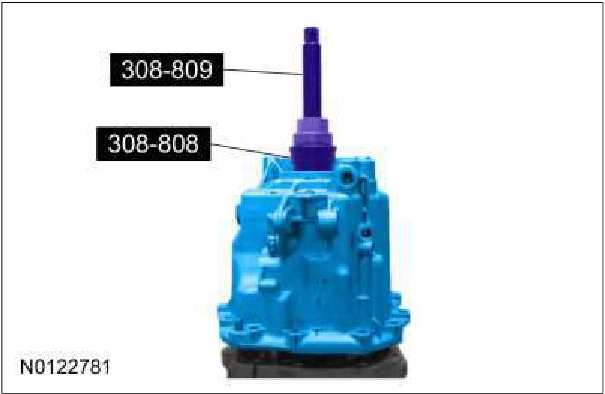

Using the special tools, install the rear transmission case assembly. Use Special Service Tool: 308-809 Installer, Syncro Gear Pack. , 308-808 Installer, Rear Flange.

308-03A Manual Transmission - 6-Speed Manual Transmission -MT82 — original illustration 2, reference 3145Original colors & callouts · Select to enlarge

43. NOTICE: Make sure the shift fork pivot bolts engage into the shift fork or damage to the shift fork

can occur.

Apply threadlock and sealer and install the shift fork pivot bolts. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6) Torque : 27 lb.ft (37 Nm)

Source reference 3145
