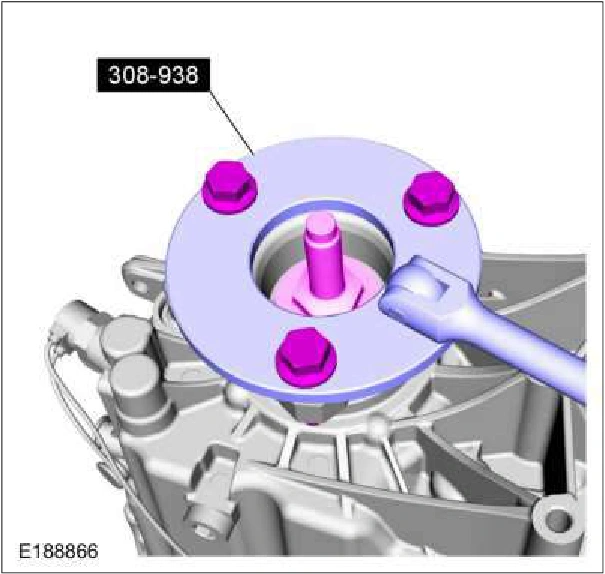

53. Clean the threads on the output shaft bolt and apply one dot of threadlock to the lower end of the output shaft bolt threads. Using the special tools, install the output shaft flange bolt and tighten in 3 stages. Use Special Service Tool: 308-938 Remover/Installer, Companion Flange Nut. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6) Torque : Stage 1: 148 lb.ft (200 Nm) Stage 2: Loosen: 5 turn(s) Stage 3: 133 lb.ft (180 Nm)
54. Install the countershaft bolt cover in the clutch housing. Using the special tools, drive the countershaft bolt cover into the clutch housing. Use Special Service Tool: 308-811 Installer, Rear Seal. , 205-153 (T80T-4000-W) Handle.
