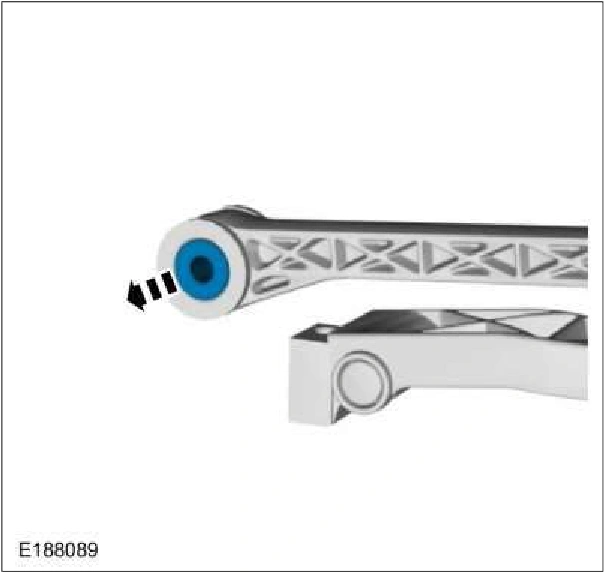

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 1, reference 3172Original colors & callouts · Select to enlarge

5. Remove the polymer bushing.

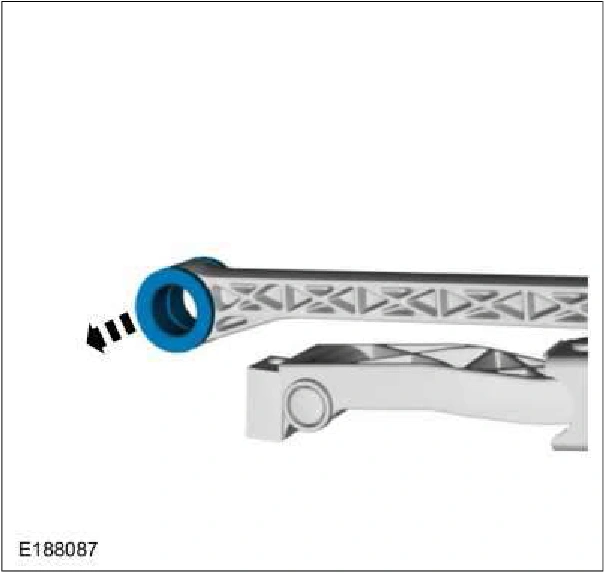

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 2, reference 3172Original colors & callouts · Select to enlarge

6. NOTE: The anti-rattle washer is installed above the roll pin.

1. Remove the anti-rattle washer.

2. Using a punch, remove the roll pin. Use the General Equipment: Punch

3. Remove and discard the bolt.

Source reference 3172
