308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82

2016 MustangMT82Reference 3,173 / 6,619HTML edition

← Chapter contents

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 1, reference 3173Original colors & callouts · Select to enlarge

ASSEMBLY

Step 1

1. Install a new bolt.

2. Install the roll pin.

3. Install the anti-rattle washer.

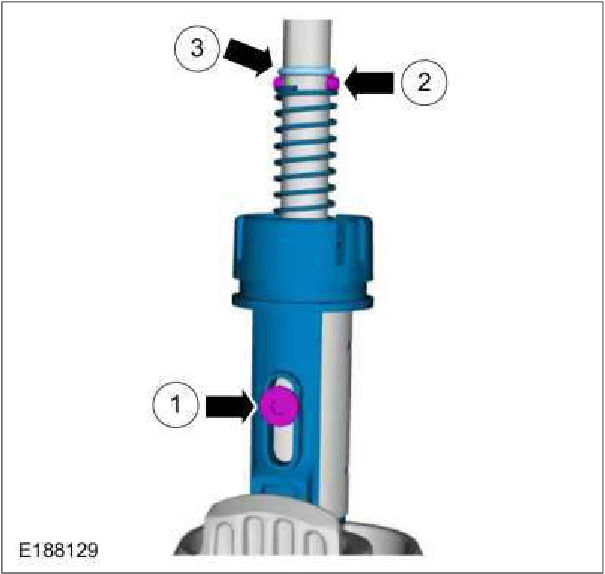

308-06A Manual Transmission External Controls - 6-Speed ManualTransmission - MT82 — original illustration 2, reference 3173Original colors & callouts · Select to enlarge

2. Install the polymer bushing.

Source reference 3173
