Muffler Inlet Pipe

309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

06/18/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Clean all exhaust connections before reassembly.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

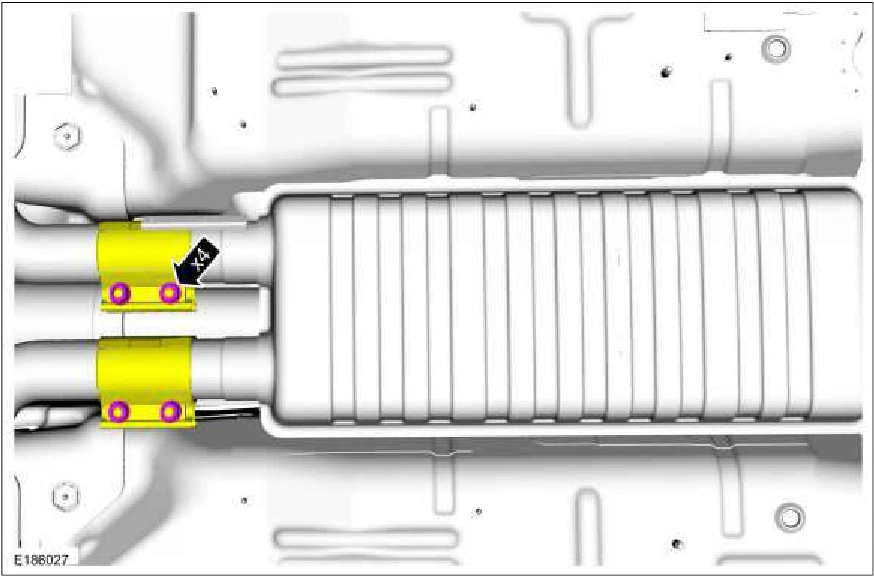

2. Loosen the clamps and separate the muffler and tailpipe from the RH catalytic converter and LH muffler inlet pipe. Torque : 35 lb.ft (48 Nm)

309-00C Exhaust System - 5.0L — original illustration 1, reference 3194Original colors & callouts · Select to enlarge

3. Loosen the ball clamp, release the bracket tab and remove the muffler inlet pipe. Torque : 22 lb.ft (30 Nm)

Source reference 3194
