Installation

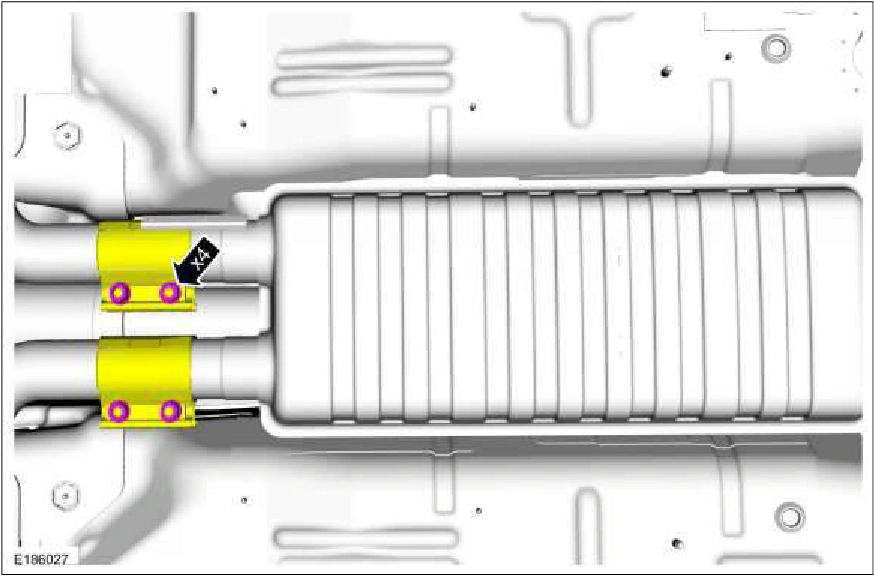

309-00C Exhaust System - 5.0L — original illustration 1, reference 3193Original colors & callouts · Select to enlarge

Step 4

1. Remove the LH and RH rear exhaust hanger isolator bracket bolts from the rear subframe. Torque : 18 lb.ft (25 Nm)

2. Unhook the rear exhaust hanger isolators and remove the muffler and tailpipe.

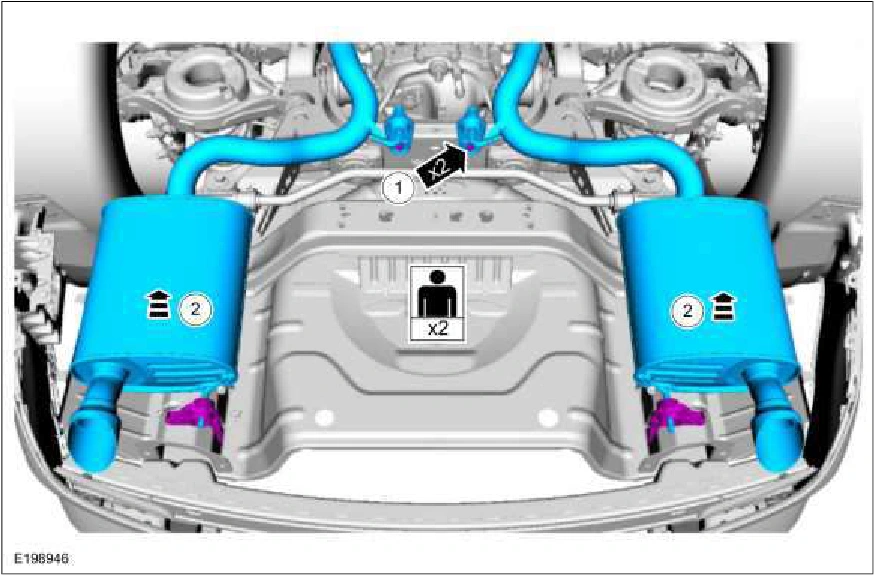

309-00C Exhaust System - 5.0L — original illustration 2, reference 3193Original colors & callouts · Select to enlarge

1. To install, reverse the removal procedure.

2. Check the exhaust system for leaks.

Source reference 3193
