Catalytic Converter RH

309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 2016 Mustang (308kW/418PS)

Procedure revision date:

Removal and Installation

06/18/2015

Base Part Number: 5G218

Removal

NOTE: If the catalytic converter is not being replaced, the HO2S and the catalyst monitor sensor do not need to be removed from the catalytic converter. Disconnecting the electrical connectors is still necessary.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Clean all exhaust connections before reassembly.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Loosen the clamps, release the tabs and slide the clamps back on the muffler. Separate the muffler and tailpipe from the RH catalytic converter and LH muffler inlet pipe. Torque : 35 lb.ft (48 Nm)

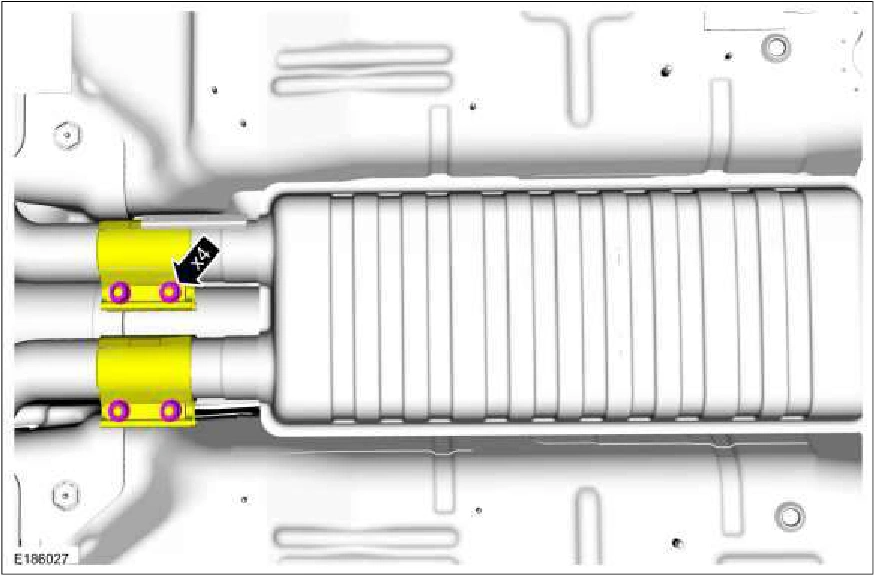

309-00C Exhaust System - 5.0L — original illustration 1, reference 3190Original colors & callouts · Select to enlarge

Step 3

1. Disconnect the catalyst monitor sensor electrical connector.

2. Remove and discard the nuts and remove the catalytic convertor. Torque : 30 lb.ft (40 Nm)

Source reference 3190
