Installation

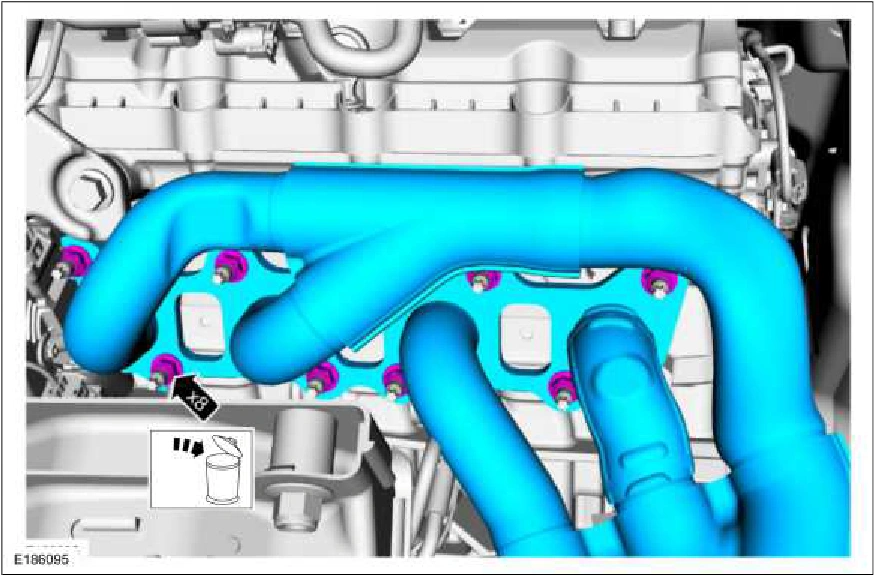

309-00C Exhaust System - 5.0L — original illustration 1, reference 3188Original colors & callouts · Select to enlarge

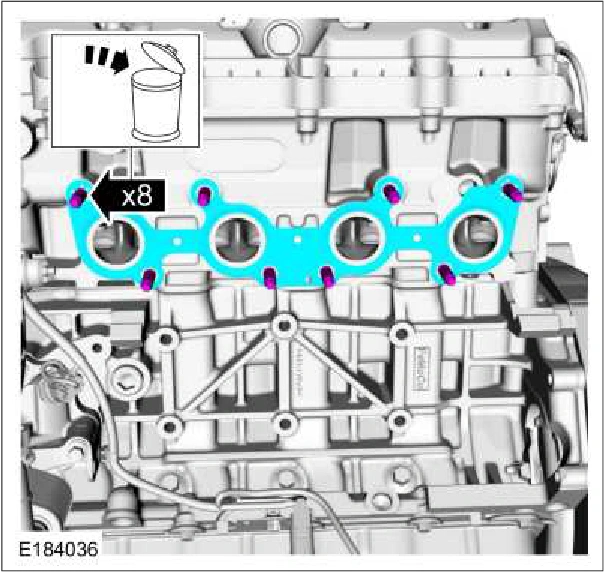

18. Remove and discard the gasket and studs. Torque : 159 lb.in (18 Nm)

309-00C Exhaust System - 5.0L — original illustration 2, reference 3188Original colors & callouts · Select to enlarge

1. To install, reverse the removal procedure.

Step 2

1. Position the catalytic converter onto the engine and finger-tight the nuts.

2. Tighten the nuts in the sequence shown. Torque : 24 lb.ft (32 Nm)

Source reference 3188
