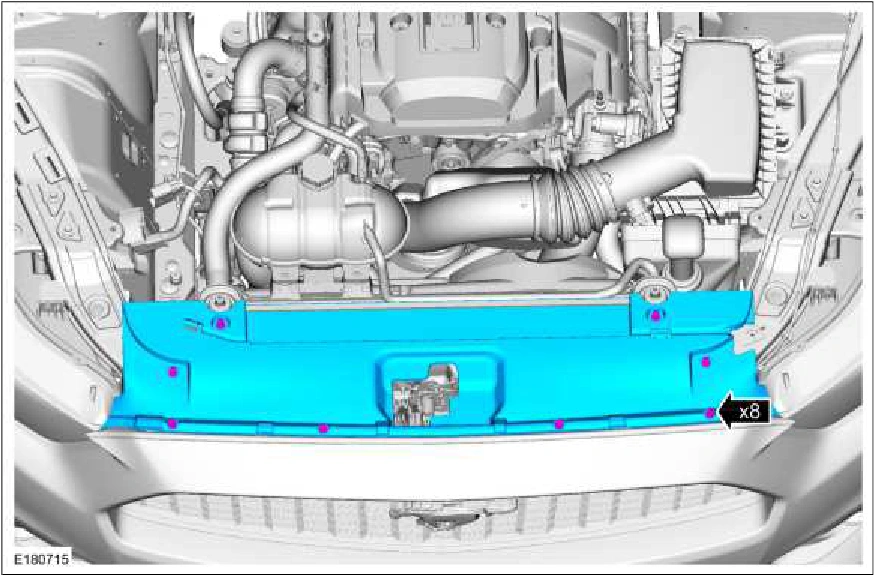

309-00C Exhaust System - 5.0L — original illustration 1, reference 3185Original colors & callouts · Select to enlarge

12. NOTICE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs

should be positioned on the body structure. Failure to follow these instructions may result in body damage.

Install the special tools and raise the engine 50 mm (2 inch). Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-050 (T70P-6000) Lifting Bracket, Engine.

309-00C Exhaust System - 5.0L — original illustration 2, reference 3185Original colors & callouts · Select to enlarge

13. Detach the steering column lower shaft from the coupling.

1. WARNING: DO NOT hammer, pry or force steering column and column shafts during

installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could

Source reference 3185
