309-00C Exhaust System - 5.0L — 2016 workshop reference 3183

309-00C Exhaust System - 5.0L — original illustration 1, reference 3183Original colors & callouts · Select to enlarge

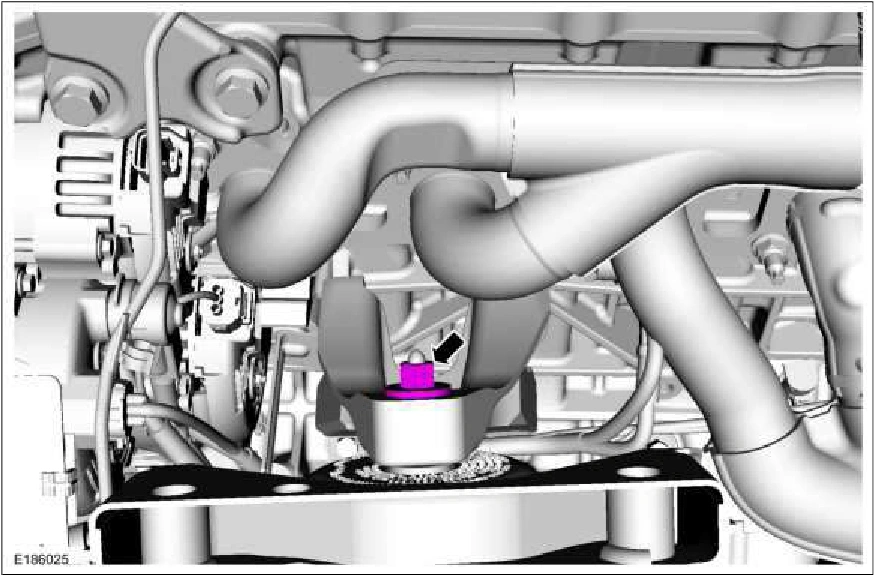

6. Remove the RH motor mount nut. Torque : 46 lb.ft (63 Nm)

309-00C Exhaust System - 5.0L — original illustration 2, reference 3183Original colors & callouts · Select to enlarge

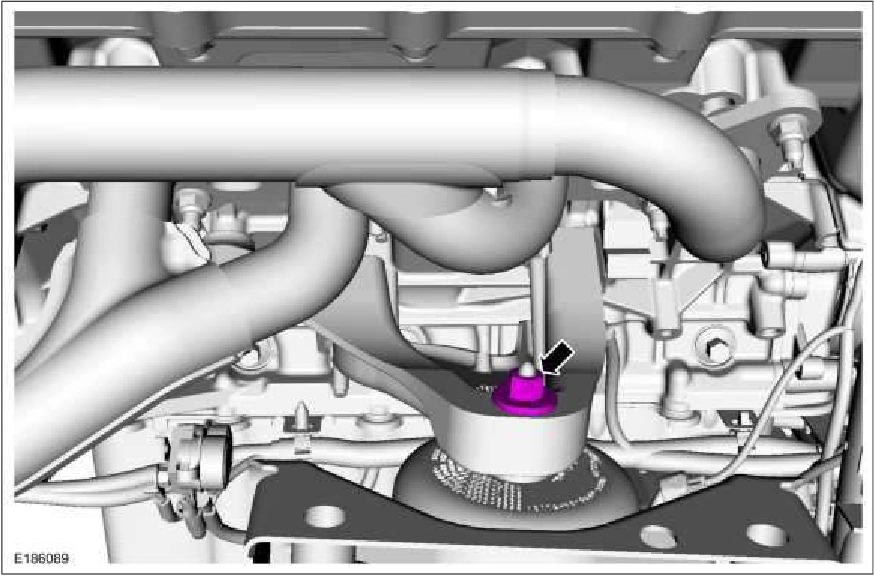

7. If equipped with a strut tower cross brace, detach the wiring harness retainer. Remove and discard the nuts, remove the strut tower cross brace. Torque : 41 lb.ft (55 Nm)
