2016 workshop · Exhaust System

309-00C Exhaust System - 5.0L

2016 Mustang5.0LReference 3,182 / 6,619HTML edition

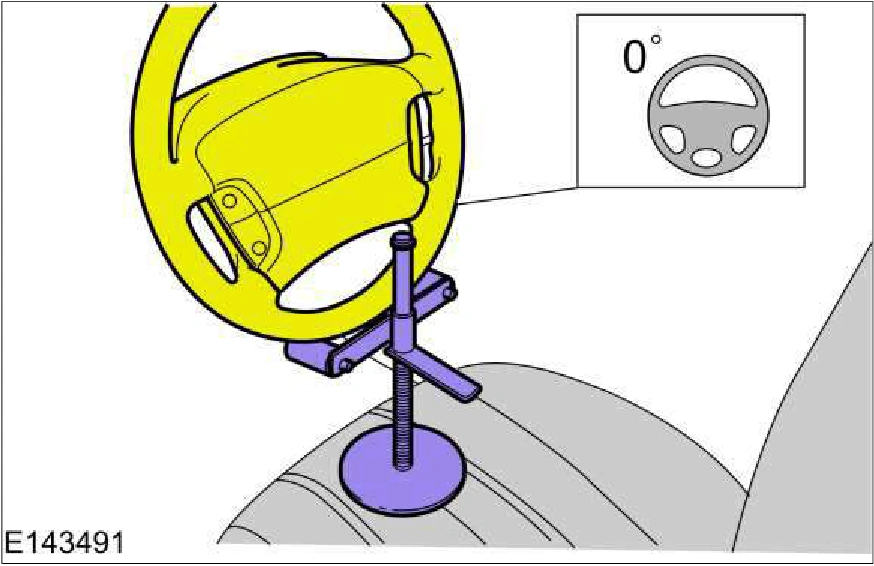

4. Steering wheel in straight ahead position.

309-00C Exhaust System - 5.0L — original illustration 2, reference 3182Original colors & callouts · Select to enlarge

5. Remove the LH motor mount nut. Torque : 46 lb.ft (63 Nm)

Source reference 3182
