309-00C Exhaust System - 5.0L — 2016 workshop reference 3184

309-00C Exhaust System - 5.0L — original illustration 1, reference 3184Original colors & callouts · Select to enlarge

8. Remove the engine appearance cover.

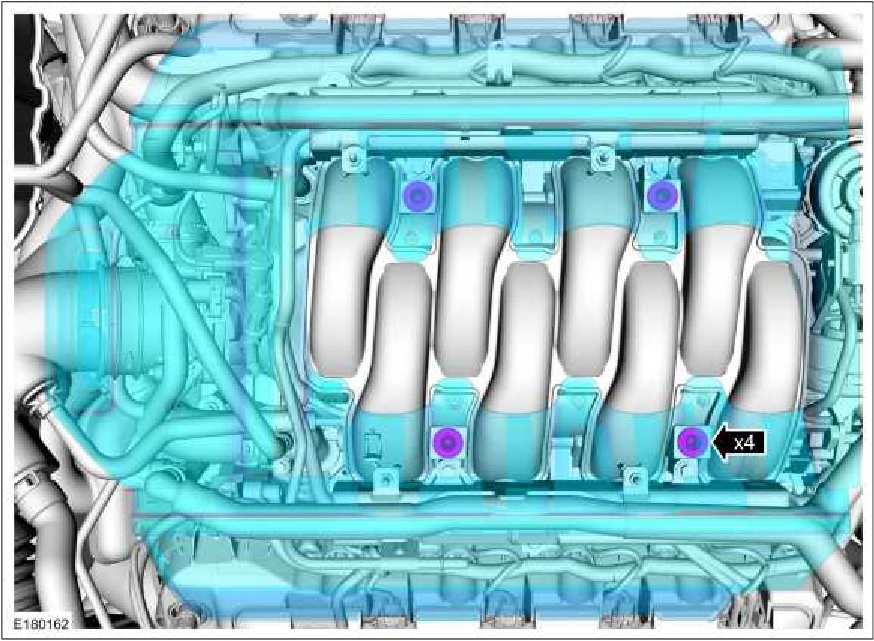

309-00C Exhaust System - 5.0L — original illustration 2, reference 3184Original colors & callouts · Select to enlarge

9. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

10. Remove the air cleaner. Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

11. Remove the retainers and the radiator sight shield.
