309-00C Exhaust System - 5.0L — 2016 workshop reference 3187

309-00C Exhaust System - 5.0L — original illustration 1, reference 3187Original colors & callouts · Select to enlarge

Step 16

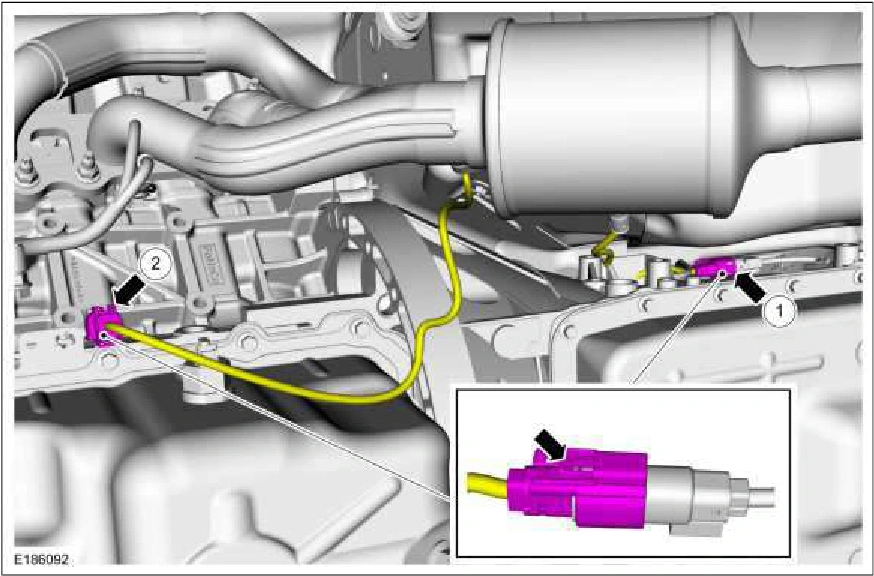

1. Disconnect the HO2S electrical connector.

2. Disconnect the catalyst monitor sensor electrical connector.

309-00C Exhaust System - 5.0L — original illustration 2, reference 3187Original colors & callouts · Select to enlarge

17. Remove and discard the nuts, remove the LH catalytic converter. Torque : 24 lb.ft (32 Nm)
