result in serious personal injury or death.
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

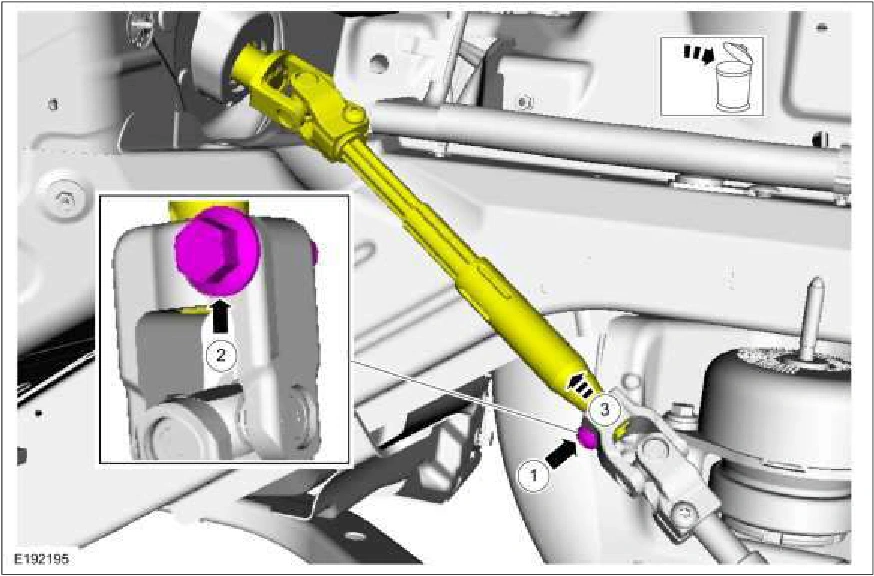

NOTE: Vehicles equipped with LHD.
Remove and discard the bolt. Torque : 22 lb.ft (30 Nm)
2. NOTE: Vehicles equipped with RHD.
Remove and discard the bolt. Torque : 35 lb.ft (47.5 Nm)
3. Pull apart the steering column lower shaft from the coupling.
4. After reassembly, inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check (211-04 Steering Column, General Procedures).
14. Remove the muffler inlet pipe. Refer to: Muffler Inlet Pipe (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).
15. Remove the bolts and stud bolts and remove the LH motor mount bracket. Torque : 46 lb.ft (63 Nm)
