310-01D Fuel Tank and Lines - 5.2L 32V Ti-VCT 2016 Mustang

Removal and Installation Procedure revision date: 07/30/2015

Fuel Level Sender

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit (310-01D Fuel Tank and Lines - 5.2L 32V Ti-VCT, Removal and Installation).

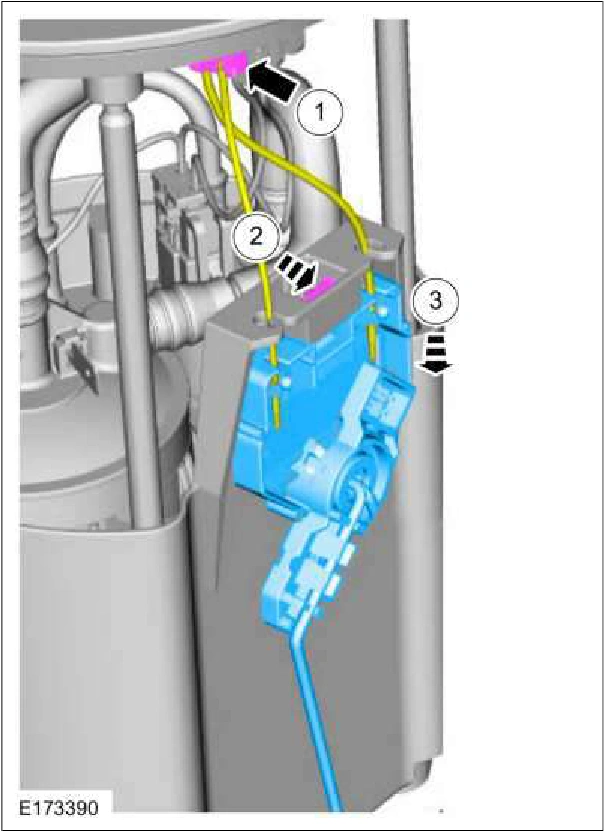

2.

Fuel Level Sender — original illustration 1, reference 3199Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Copyright © 2016 Ford Motor Company
