Fuel Level Sensor — 2016 workshop reference 3203

Install a new Fuel Pump and Sender Unit or fuel tank if the O-ring seal contact area is bent, scratched or corroded.

Remove and discard the O-ring seal.

11. Remove the access cover and position aside.

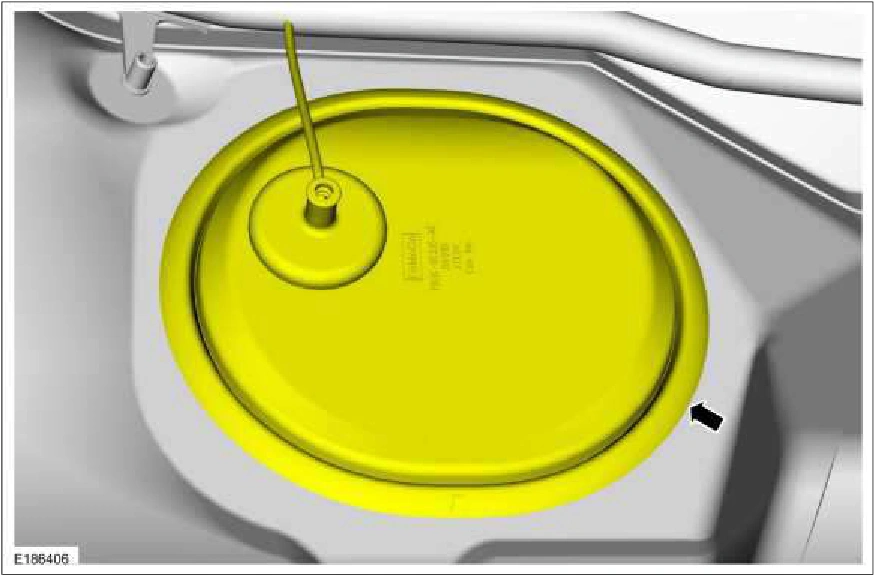

Fuel Level Sensor — original illustration 1, reference 3203Original colors & callouts · Select to enlarge

12. NOTE: Clean the fuel level sensor connections, flange surfaces and the immediate surrounding area of any dirt or foreign material.

Disconnect the electrical connector.

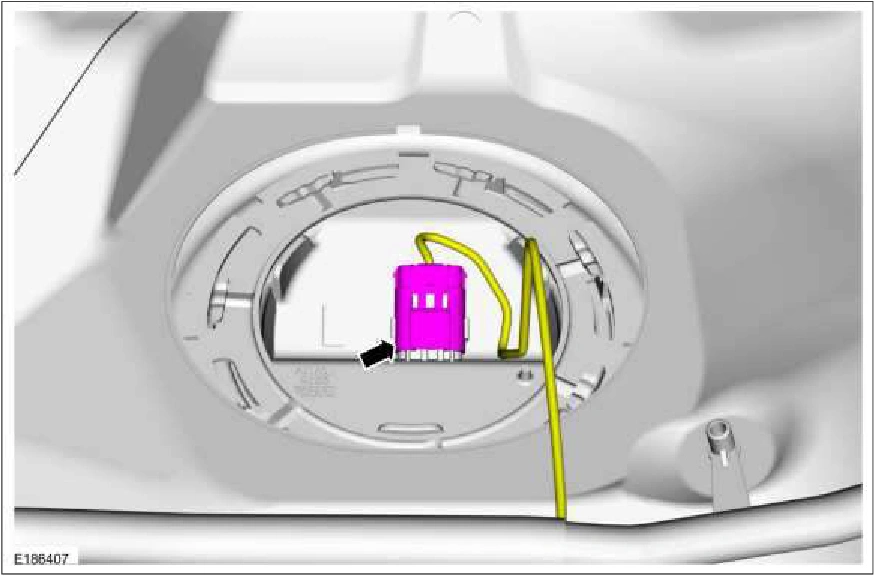

Fuel Level Sensor — original illustration 2, reference 3203Original colors & callouts · Select to enlarge
