Fuel Lines

310-01D Fuel Tank and Lines - 5.2L 32V Ti-VCT 2016 Mustang

Removal and Installation Procedure revision date: 07/30/2015

Removal

1. Remove the fuel tank. Refer to: Fuel Tank (310-01D Fuel Tank and Lines - 5.2L 32V Ti-VCT, Removal and Installation).

2. Remove LH Catalytic Converter. Refer to: Catalytic Converter LH (309-00D Exhaust System - 5.2L 32V Ti-VCT, Removal and Installation).

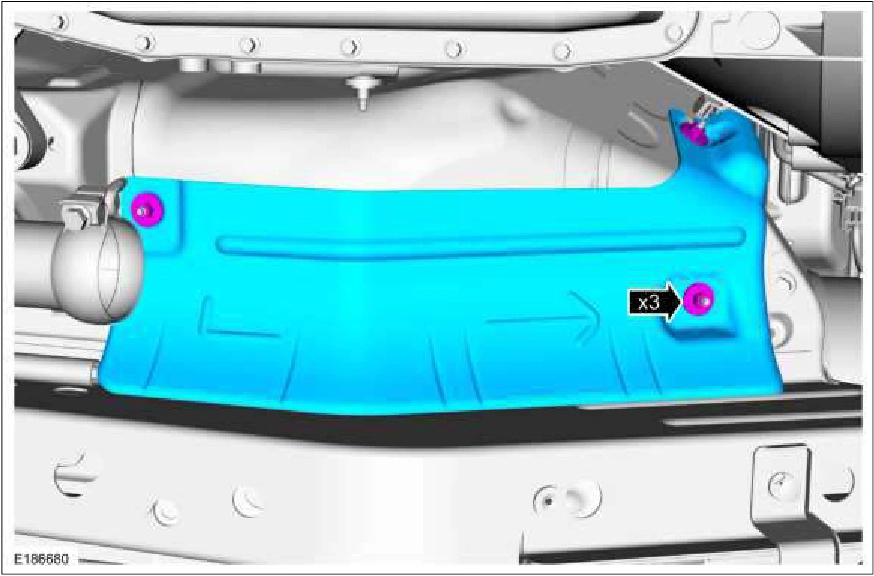

3. Remove the heat shield. Torque : 71 lb.in (8 Nm)

Fuel Lines — original illustration 1, reference 3206Original colors & callouts · Select to enlarge

4. Release the fuel line from the retainers.

Source reference 3206
