Fuel Lines — 2016 workshop reference 3207

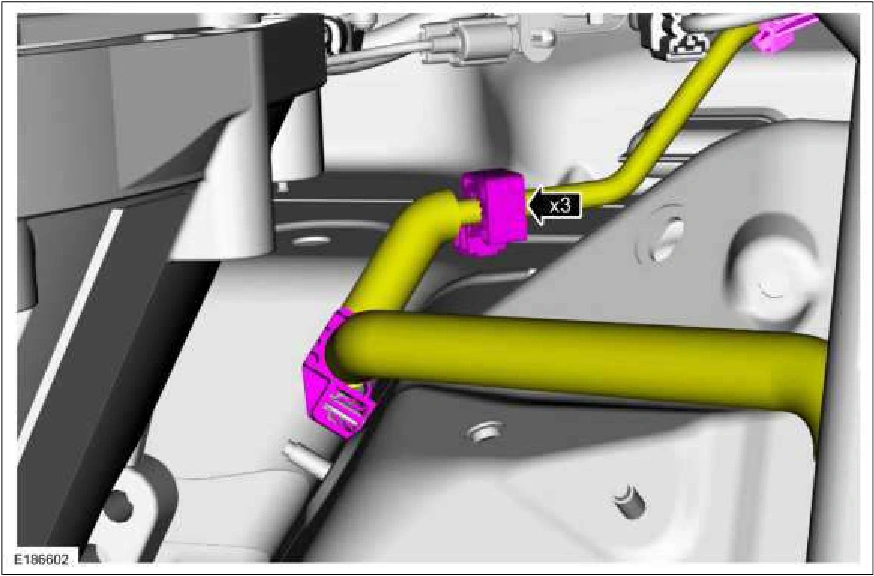

Fuel Lines — original illustration 1, reference 3207Original colors & callouts · Select to enlarge

5. Disconnect the fuel line-to-fuel rail jumper tube spring lock coupling. Refer to: Spring Lock Couplings (310-00D Fuel System - General Information - 5.2L 32V Ti-VCT, General Procedures).

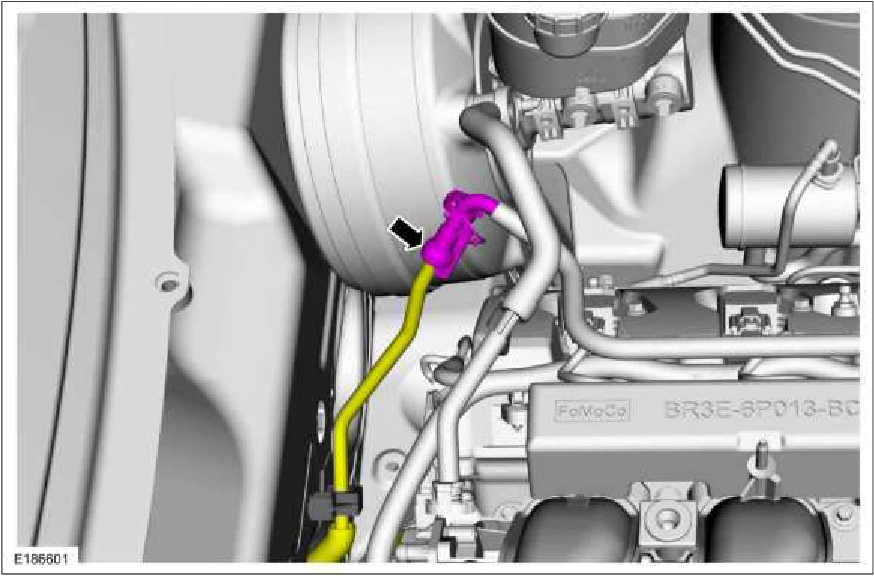

Fuel Lines — original illustration 2, reference 3207Original colors & callouts · Select to enlarge

6. Remove the nuts, bolts, push-pins and splash shield.

Source reference 3207
