Fuel Pump and Sender Unit

310-01D Fuel Tank and Lines - 5.2L 32V Ti-VCT 2016 Mustang

Removal and Installation Procedure revision date: 07/30/2015

Base Part Number: 9275

Special Tool(s) / General Equipment

Fuel Pump and Sender Unit — original illustration 1, reference 3210Original colors & callouts · Select to enlarge	292-00004 Fuel Tanker 100 GPM
Fuel Pump and Sender Unit — original illustration 2, reference 3210Original colors & callouts · Select to enlarge	310-123 Locking Ring, Fuel Tank TKIT-2004J-F TKIT-2005U-LM

Removal

1. Release the fuel system pressure. Refer to: Fuel System Pressure Release (310-00D Fuel System - General Information - 5.2L 32V Ti-VCT, General Procedures).

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. NOTE: The supplemental refueling adapter is located in the luggage compartment.

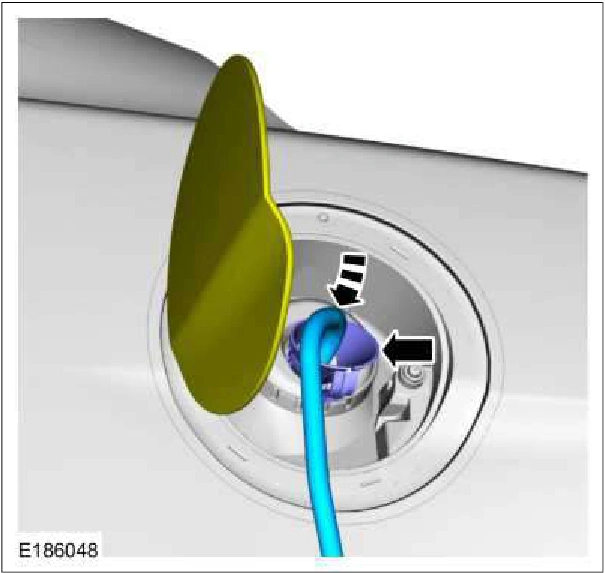

Install the supplemental refueling adapter and a 6 ft. length of 5/8 in. semi-rigid fuel drain tube into the Easy Fuel™ (capless) fuel tank filler pipe until the tube enters the fuel tank.

Fuel Pump and Sender Unit — original illustration 3, reference 3210Original colors & callouts · Select to enlarge

Source reference 3210
