Fuel Pump and Sender Unit — 2016 workshop reference 3213

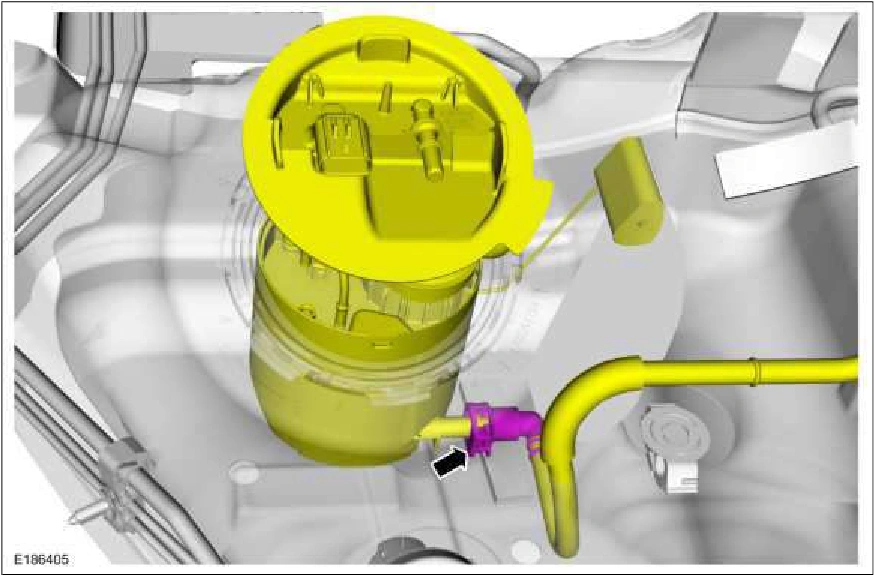

Fuel Pump and Sender Unit — original illustration 1, reference 3213Original colors & callouts · Select to enlarge

Installation

1. NOTE: Make sure to install a new Fuel Pump and Sender Unit O-ring seal.

NOTE: Make sure the alignment tabs on the Fuel Pump and Sender Unit and the fuel tank meet prior to tightening the Fuel Pump and Sender Unit lock ring.

To install, reverse the removal procedure.

Source reference 3213
