Fuel Tank

310-01D Fuel Tank and Lines - 5.2L 32V Ti-VCT 2016 Mustang

Removal and Installation Procedure revision date: 07/30/2015

Base Part Number: 9002

Special Tool(s) / General Equipment

Fuel Tank — original illustration 1, reference 3214Original colors & callouts · Select to enlarge	310-123 Locking Ring, Fuel Tank TKIT-2004J-F TKIT-2005U-LM
Flat Headed Screw Driver

Materials

Name	Specification
Threadlock and Sealer TA-25-B	-

Removal

NOTE: Removal steps in this procedure may contain installation steps.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. Drain the fuel tank. Refer to: Fuel Tank Draining (310-00D Fuel System - General Information - 5.2L 32V Ti-VCT, General Procedures).

4. Remove the muffler and tailpipe. Refer to: Muffler and Tailpipe (309-00D Exhaust System - 5.2L 32V Ti-VCT, Removal and Installation).

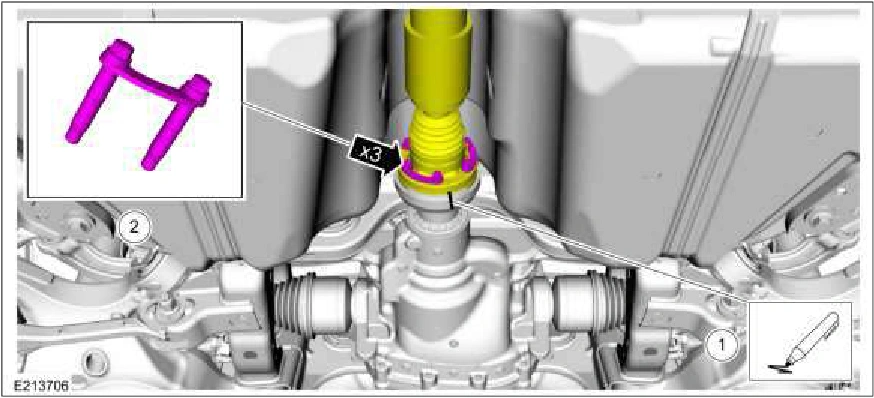

5. Index mark the driveshaft and pinion flange for reference during installation. Remove the driveshaft to pinion flange bolts.

Fuel Tank — original illustration 2, reference 3214Original colors & callouts · Select to enlarge
