Fuel Tank — 2016 workshop reference 3215

6. NOTICE: Do not over articulate the driveshaft or damage may occur.

Support the driveshaft. Using a screwdriver inserted into the slot on the pinion flange, pry the driveshaft from the pinion flange. Use the General Equipment: Flat Headed Screw Driver Separate the driveshaft from the pinion flange.

Fuel Tank — original illustration 1, reference 3215Original colors & callouts · Select to enlarge

7. NOTICE: Do not over articulate the driveshaft or damage may occur.

Remove the driveshaft center support bearing bolts and lower the driveshaft away from the rear axle flange.

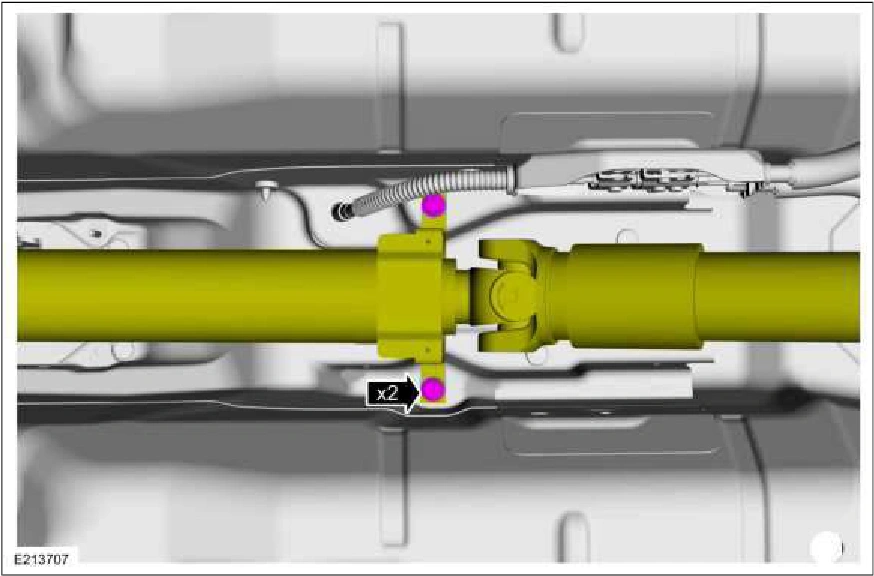

Fuel Tank — original illustration 2, reference 3215Original colors & callouts · Select to enlarge

8. Release the clamp and disconnect the fuel tank filler pipe from the fuel tank.

Source reference 3215
