Fuel Tank — 2016 workshop reference 3216

Fuel Tank — original illustration 1, reference 3216Original colors & callouts · Select to enlarge

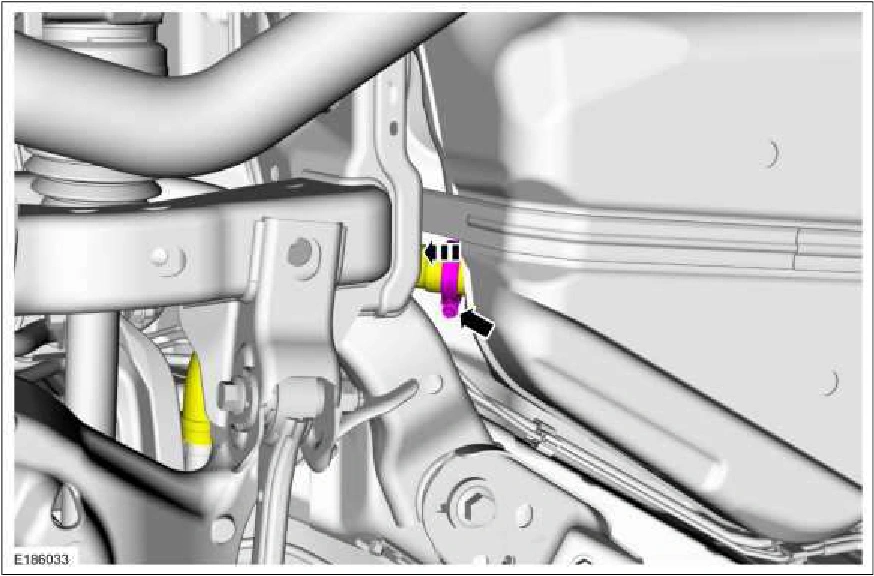

9. Disconnect the fuel vapor tube assembly-to-fuel tank quick connect coupling. Refer to: Quick Release Coupling (310-00D Fuel System - General Information - 5.2L 32V Ti-VCT, General Procedures).

Fuel Tank — original illustration 2, reference 3216Original colors & callouts · Select to enlarge

10. Remove the nut and position the LH emergency brake cable bracket aside.
